RAX 412 NADELLA

Brand - NADELLA
Item Number - RAX 412 NADELLA
Category - Combined Bearing with Incorporate Thrust Plate

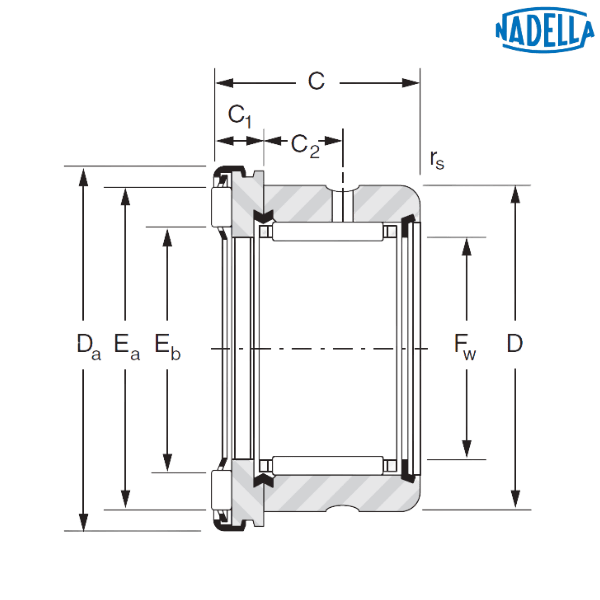

Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 12 mm
Diameter of Inner Raceway (Fw) - 12 mm
Length (C) - 19 mm
Outer Diameter (D) - 21 mm
Outer Diameter (Da) - 26 mm
Dimension (Eb) - 15 mm
Dimension (Ea) - 22.6 mm
Dimension (C1) - 5 mm
Dimension (C2) - 6 mm
Minimum Chamfer Dimension (rs) - 0.35 mm
Radial Dynamic Load Rating (C) - 6.78 kN
Radial Static Load Rating (C0) - 9.03 kN
Axial Dynamic Load Rating (C) - 7.1 kN
Axial Static Load Rating (C0) - 18.5 kN
Speed Rating - 13000 rpm
Weight - 0.032 kg
Compatible Inner Ring - JR 9x12x16
Compalible Thin Thrust Plate - CP 12 26
Compalible Thick Thrust Plate - CP 2 12 26

Description of Prefix :
RAX 400 - Needle combined bearing with needle thrust cage
