RAX 417 NADELLA

Brand - NADELLA
Item Number - RAX 417 NADELLA
Category - Combined Bearing with Incorporate Thrust Plate

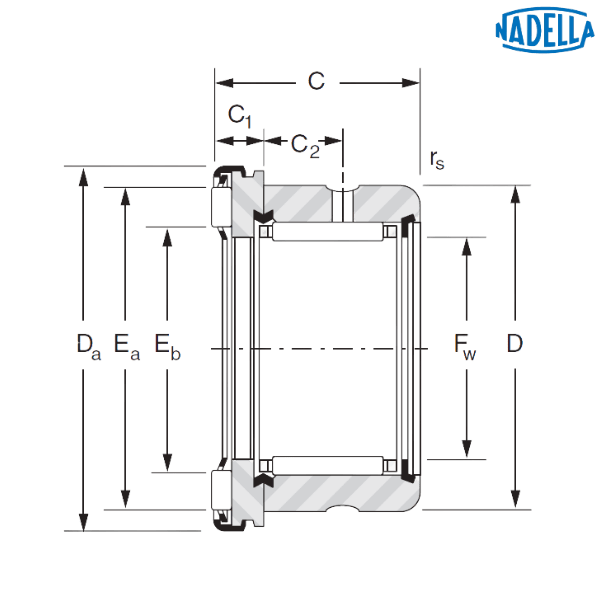

Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 17 mm
Diameter of Inner Raceway (Fw) - 17 mm
Length (C) - 21 mm
Outer Diameter (D) - 26 mm
Outer Diameter (Da) - 30 mm
Dimension (Eb) - 19 mm
Dimension (Ea) - 26.6 mm
Dimension (C1) - 5 mm
Dimension (C2) - 6 mm
Minimum Chamfer Dimension (rs) - 0.65 mm
Radial Dynamic Load Rating (C) - 11.8 kN
Radial Static Load Rating (C0) - 16.3 kN
Axial Dynamic Load Rating (C) - 8.1 kN
Axial Static Load Rating (C0) - 23 kN
Speed Rating - 10500 rpm
Weight - 0.041 kg
Compatible Inner Ring - JR 14x17x17
Compalible Thin Thrust Plate - CP 17 30
Compalible Thick Thrust Plate - CP 2 17 30

Description of Prefix :
RAX 400 - Needle combined bearing with needle thrust cage
