RAX 445 NADELLA

Brand - NADELLA
Item Number - RAX 445 NADELLA
Category - Combined Bearing with Incorporate Thrust Plate

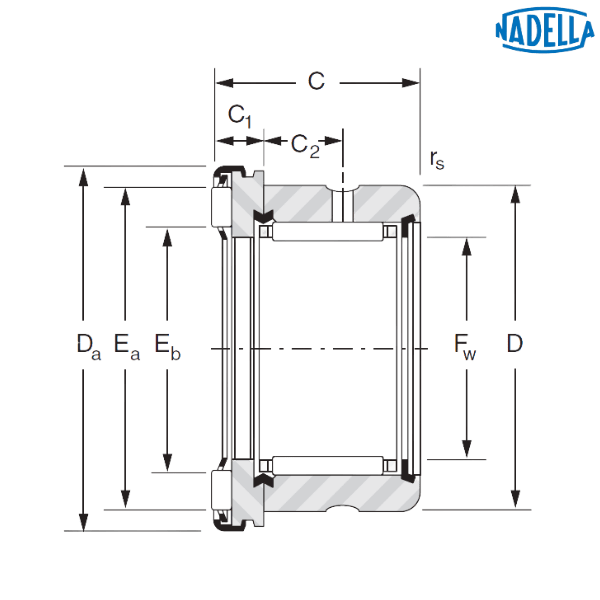

Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 45 mm
Diameter of Inner Raceway (Fw) - 45 mm
Length (C) - 24 mm
Outer Diameter (D) - 58 mm
Outer Diameter (Da) - 65 mm
Dimension (Eb) - 48 mm
Dimension (Ea) - 59.9 mm
Dimension (C1) - 6 mm
Dimension (C2) - 9 mm
Minimum Chamfer Dimension (rs) - 0.85 mm
Radial Dynamic Load Rating (C) - 24.9 kN
Radial Static Load Rating (C0) - 51.8 kN
Axial Dynamic Load Rating (C) - 21.8 kN
Axial Static Load Rating (C0) - 109 kN
Speed Rating - 4500 rpm
Weight - 0.179 kg
Compatible Inner Ring - JR 40x45x20
Compalible Thin Thrust Plate - CP 45 65
Compalible Thick Thrust Plate - CP 3 45 65

Description of Prefix :
RAX 400 - Needle combined bearing with needle thrust cage

♦ ♦ Images are for representation purposes only
