RAX 450 NADELLA

Brand - NADELLA
Item Number - RAX 450 NADELLA
Category - Combined Bearing with Incorporate Thrust Plate

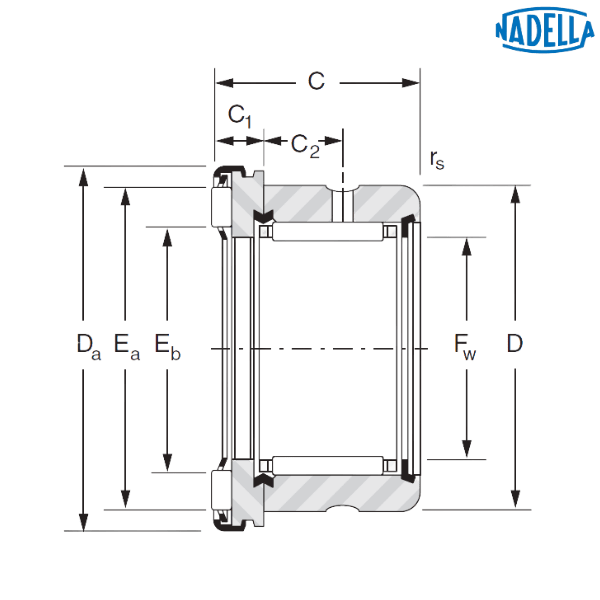

Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 50 mm
Diameter of Inner Raceway (Fw) - 50 mm
Length (C) - 27 mm
Outer Diameter (D) - 62 mm
Outer Diameter (Da) - 70 mm
Dimension (Eb) - 53.3 mm
Dimension (Ea) - 65.7 mm
Dimension (C1) - 6 mm
Dimension (C2) - 11 mm
Minimum Chamfer Dimension (rs) - 1.3 mm
Radial Dynamic Load Rating (C) - 30.2 kN
Radial Static Load Rating (C0) - 68.5 kN
Axial Dynamic Load Rating (C) - 22.5 kN
Axial Static Load Rating (C0) - 118 kN
Speed Rating - 4000 rpm
Weight - 0.205 kg
Compatible Inner Ring - JR 45x50x25
Compalible Thin Thrust Plate - CP 50 70
Compalible Thick Thrust Plate - CP 3 50 70

Description of Prefix :
RAX 400 - Needle combined bearing with needle thrust cage

♦ ♦ Images are for representation purposes only
