RAX 460 NADELLA

Brand - NADELLA
Item Number - RAX 460 NADELLA
Category - Combined Bearing with Incorporate Thrust Plate

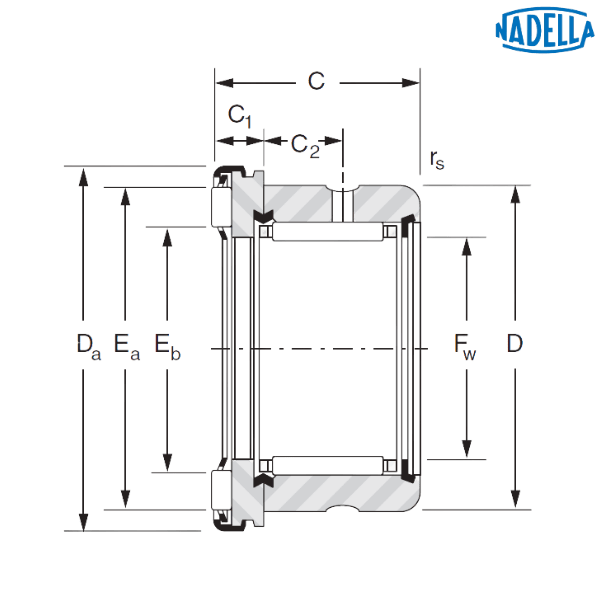

Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 60 mm
Diameter of Inner Raceway (Fw) - 60 mm
Length (C) - 28 mm
Outer Diameter (D) - 72 mm
Outer Diameter (Da) - 85 mm
Dimension (Eb) - 63.5 mm
Dimension (Ea) - 79.2 mm
Dimension (C1) - 7 mm
Dimension (C2) - 11 mm
Minimum Chamfer Dimension (rs) - 1.3 mm
Radial Dynamic Load Rating (C) - 31.9 kN
Radial Static Load Rating (C0) - 78.1 kN
Axial Dynamic Load Rating (C) - 31.5 kN
Axial Static Load Rating (C0) - 193 kN
Speed Rating - 3500 rpm
Weight - 0.282 kg
Compatible Inner Ring - JR 55x60x25
Compalible Thin Thrust Plate - CP 60 85
Compalible Thick Thrust Plate - CP 4 60 85

Description of Prefix :
RAX 400 - Needle combined bearing with needle thrust cage

♦ ♦ Images are for representation purposes only
