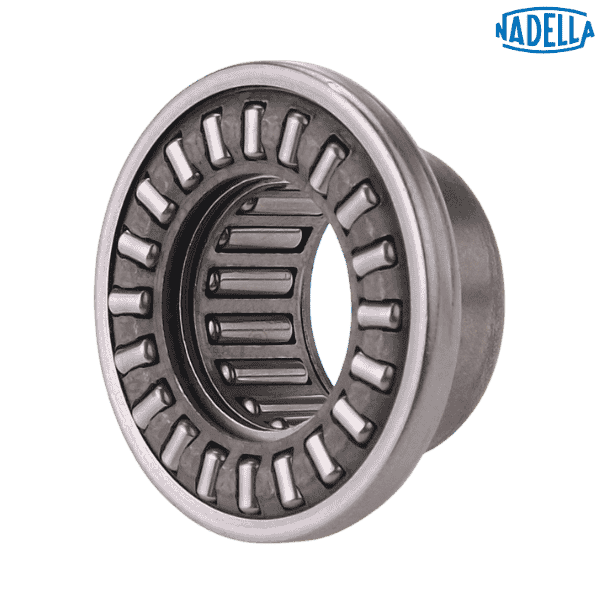

RAX 470 NADELLA

Brand - NADELLA
Item Number - RAX 470 NADELLA
Category - Combined Bearing with Incorporate Thrust Plate

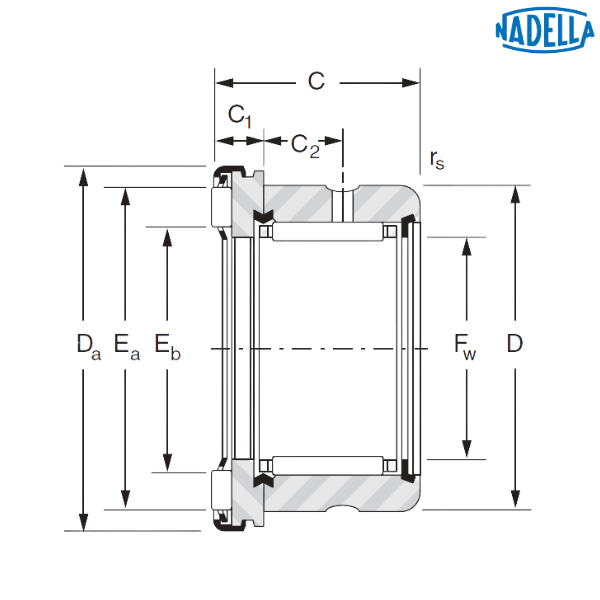

Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 70 mm
Diameter of Inner Raceway (Fw) - 70 mm
Length (C) - 28 mm
Outer Diameter (D) - 85 mm
Outer Diameter (Da) - 95 mm
Dimension (Eb) - 73.5 mm
Dimension (Ea) - 89.2 mm
Dimension (C1) - 7 mm
Dimension (C2) - 11 mm
Minimum Chamfer Dimension (rs) - 1.3 mm
Radial Dynamic Load Rating (C) - 36.1 kN
Radial Static Load Rating (C0) - 84.7 kN
Axial Dynamic Load Rating (C) - 34.5 kN
Axial Static Load Rating (C0) - 223 kN
Speed Rating - 3000 rpm
Weight - 0.386 kg
Compatible Inner Ring - JR 60x70x25
Compalible Thin Thrust Plate - CP 1.5 70 95
Compalible Thick Thrust Plate - CP 4 70 95

Description of Prefix :
RAX 400 - Needle combined bearing with needle thrust cage
