RAX 705 NADELLA

Brand - NADELLA
Item Number - RAX 705 NADELLA
Category - Open Type Combined Bearing

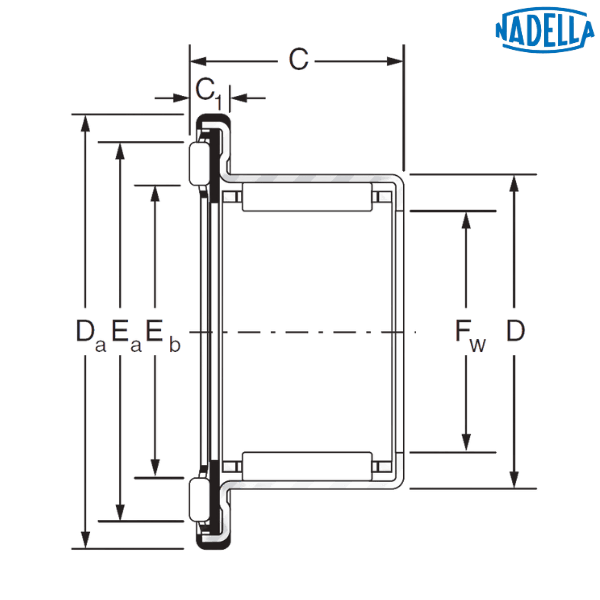

Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 5 mm
Diameter of Inner Raceway (Fw) - 5 mm
Outer Diameter (D) - 9 mm
Width (C) - 11 mm
Dimension (Da) - 15.5 mm
Dimension (Eb) - 7.2 mm
Dimension (Ea) - 11.2 mm
Dimension (C1) - 3.3 mm
Radial Dynamic Load Rating (C) - 2.15 kN
Radial Static Load Rating (C0) - 1.95 kN
Axial Dynamic Load Rating (C) - 3.15 kN
Axial Static Load Rating (C0) - 6.35 kN
Radial Limit Load - 0.74 kN
Axial Limit Load - 3.5 kN
Speed Rating - 25000 rpm
Weight - 0.005 kg
Housing (∅) - 9 mm
GO Plug- Gauges - 5.009 mm
NO-GO Plug- Gauges - 5.036 mm

Description of Prefix :
RAX 700 - Needle combined bearing with thin outer ring, open

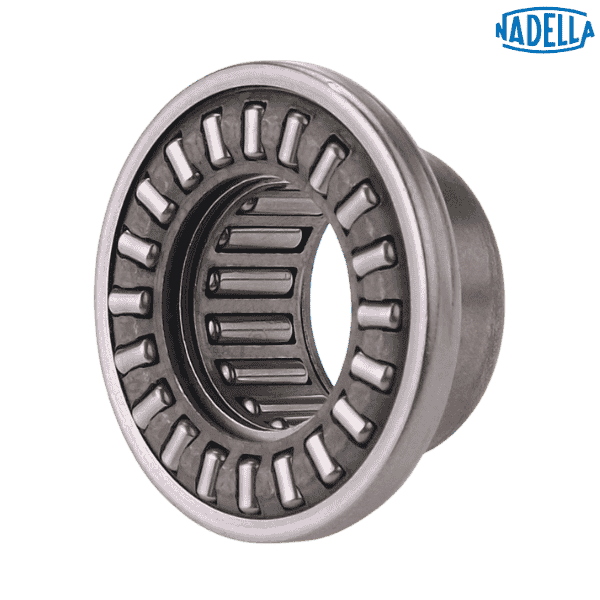

♦ ♦ Images are for representation purposes only
