RAX 712 NADELLA

Brand - NADELLA
Item Number - RAX 712 NADELLA
Category - Open Type Combined Bearing

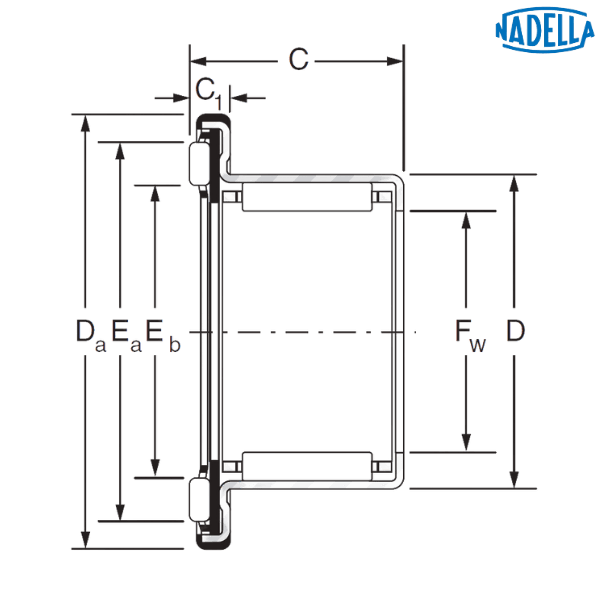

Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 12 mm
Diameter of Inner Raceway (Fw) - 12 mm
Outer Diameter (D) - 18 mm
Width (C) - 14.2 mm
Dimension (Da) - 27.5 mm
Dimension (Eb) - 15 mm
Dimension (Ea) - 22.6 mm
Dimension (C1) - 4.2 mm
Dimension (L) - 13.2 mm
Radial Dynamic Load Rating (C) - 6.3 kN
Radial Static Load Rating (C0) - 7.2 kN
Axial Dynamic Load Rating (C) - 6.9 kN
Axial Static Load Rating (C0) - 17.7 kN
Radial Limit Load - 2.5 kN
Axial Limit Load - 11 kN
Speed Rating - 13000 rpm
Weight - 0.017 kg
Housing (∅) - 18 mm
GO Plug- Gauges - 12.009 mm
NO-GO Plug- Gauges - 12.035 mm
Compatible Inner Ring - JR 8x12x12.5
Compalible Thin Thrust Plate - CP 12 26
Compalible Thick Thrust Plate - CP 2 12 26

Description of Prefix :
RAX 700 - Needle combined bearing with thin outer ring, open

♦ ♦ Images are for representation purposes only
