RAX 720 NADELLA

Brand - NADELLA
Item Number - RAX 720 NADELLA
Category - Open Type Combined Bearing

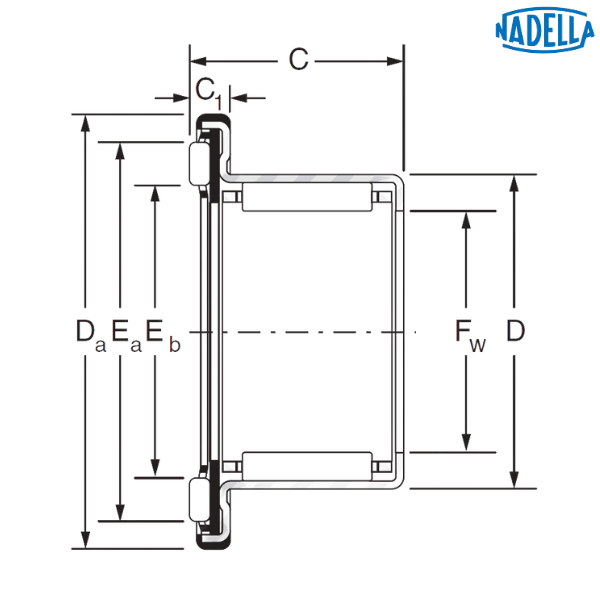

Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 20 mm
Diameter of Inner Raceway (Fw) - 20 mm
Outer Diameter (D) - 26 mm
Width (C) - 18.2 mm
Dimension (Da) - 36.5 mm
Dimension (Eb) - 22 mm
Dimension (Ea) - 31.6 mm
Dimension (C1) - 4.2 mm
Dimension (L) - 17.2 mm
Radial Dynamic Load Rating (C) - 12.2 kN
Radial Static Load Rating (C0) - 19.5 kN
Axial Dynamic Load Rating (C) - 11.8 kN
Axial Static Load Rating (C0) - 39 kN
Radial Limit Load - 6.4 kN
Axial Limit Load - 18 kN
Speed Rating - 9000 rpm
Weight - 0.031 kg
Housing (∅) - 26 mm
GO Plug- Gauges - 20.009 mm
NO-GO Plug- Gauges - 20.035 mm
Compatible Inner Ring - JR 15x20x16
Compalible Thin Thrust Plate - CP 20 35
Compalible Thick Thrust Plate - CP 3 20 35

Description of Prefix :
RAX 700 - Needle combined bearing with thin outer ring, open

♦ ♦ Images are for representation purposes only
