RAX 730 NADELLA

Brand - NADELLA
Item Number - RAX 730 NADELLA
Category - Open Type Combined Bearing

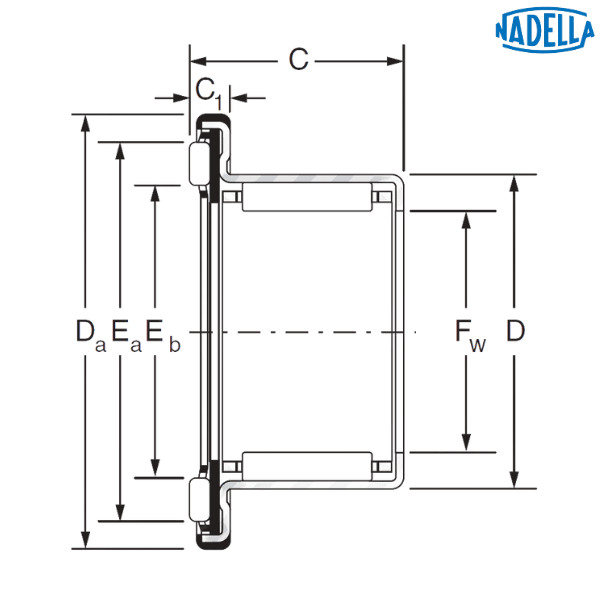

Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 30 mm
Diameter of Inner Raceway (Fw) - 30 mm
Outer Diameter (D) - 38 mm
Width (C) - 22.2 mm
Dimension (Da) - 50.5 mm
Dimension (Eb) - 35 mm
Dimension (Ea) - 44.7 mm
Dimension (C1) - 4.2 mm
Dimension (L) - 21.2 mm
Radial Dynamic Load Rating (C) - 22.3 kN
Radial Static Load Rating (C0) - 37.5 kN
Axial Dynamic Load Rating (C) - 14.9 kN
Axial Static Load Rating (C0) - 60 kN
Radial Limit Load - 12 kN
Axial Limit Load - 25 kN
Speed Rating - 6300 rpm
Weight - 0.063 kg
Housing (∅) - 38 mm
GO Plug- Gauges - 30.015 mm
NO-GO Plug- Gauges - 30.041 mm
Compatible Inner Ring - JR 25x30x20.5
Compalible Thin Thrust Plate - CP 30 47
Compalible Thick Thrust Plate - CP 3 30 47

Description of Prefix :
RAX 700 - Needle combined bearing with thin outer ring, open

♦ ♦ Images are for representation purposes only
