RAXF 715 NADELLA

Brand - NADELLA
Item Number - RAXF 715 NADELLA
Category - Closed Type Combined Bearing

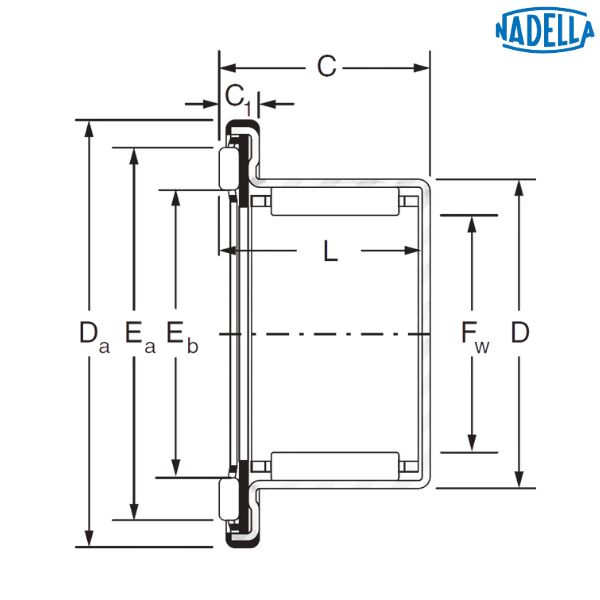

Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 15 mm
Diameter of Inner Raceway (Fw) - 15 mm
Outer Diameter (D) - 21 mm
Width (C) - 14.2 mm
Dimension (Da) - 31.5 mm
Dimension (Eb) - 19 mm
Dimension (Ea) - 26.6 mm
Dimension (C1) - 4.2 mm
Dimension (L) - 13.2 mm
Radial Dynamic Load Rating (C) - 7.4 kN
Radial Static Load Rating (C0) - 9.3 kN
Axial Dynamic Load Rating (C) - 7.8 kN
Axial Static Load Rating (C0) - 22 kN
Radial Limit Load - 3.1 kN
Axial Limit Load - 14 kN
Speed Rating - 10500 rpm
Weight - 0.022 kg
Housing (∅) - 21 mm
GO Plug- Gauges - 15.009 mm
NO-GO Plug- Gauges - 15.035 mm
Compatible Inner Ring - JR 12x15x12.5
Compalible Thin Thrust Plate - CP 15 28
Compalible Thick Thrust Plate - CP 2 15 28

Description of Prefix :

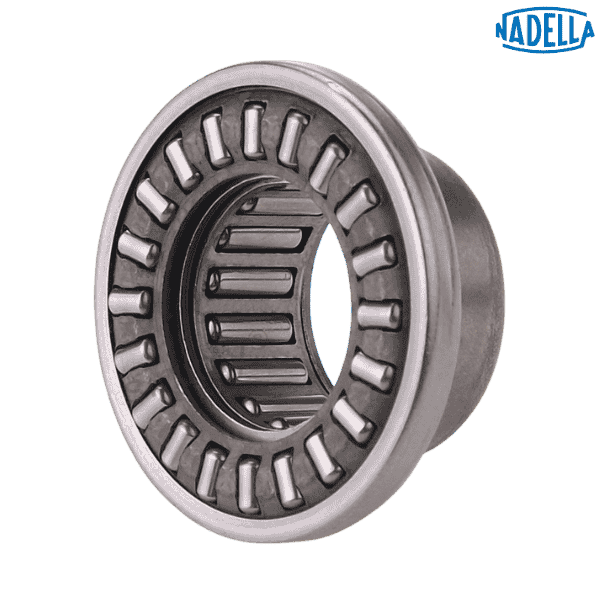

RAXF 700 - Needle combined bearing with thin outer ring, closed end

♦ ♦ Images are for representation purposes only
