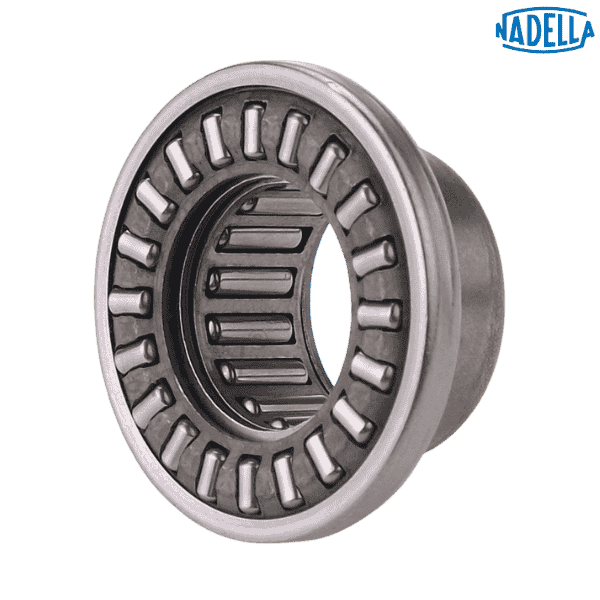

RAXF 740 NADELLA

Brand - NADELLA
Item Number - RAXF 740 NADELLA
Category - Closed Type Combined Bearing

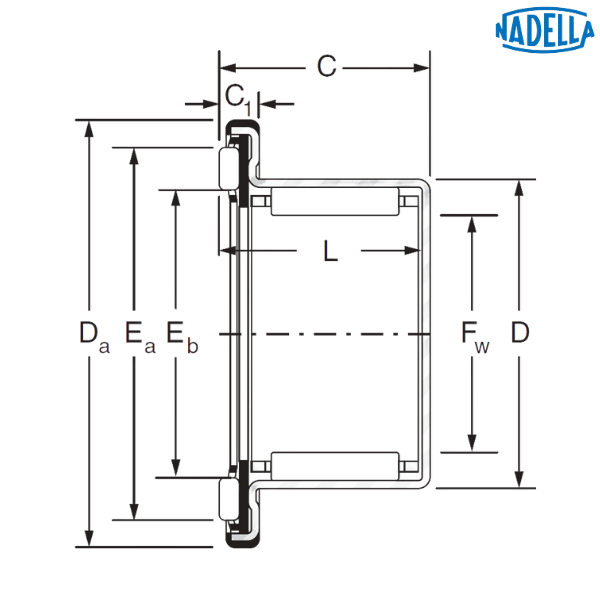

Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 40 mm
Diameter of Inner Raceway (Fw) - 40 mm
Outer Diameter (D) - 48 mm
Width (C) - 22.2 mm
Dimension (Da) - 61.5 mm
Dimension (Eb) - 43 mm
Dimension (Ea) - 54.9 mm
Dimension (C1) - 4.2 mm
Dimension (L) - 21.2 mm
Radial Dynamic Load Rating (C) - 26.2 kN
Radial Static Load Rating (C0) - 51 kN
Axial Dynamic Load Rating (C) - 20.4 kN
Axial Static Load Rating (C0) - 96 kN
Radial Limit Load - 16 kN
Axial Limit Load - 30 kN
Speed Rating - 5000 rpm
Weight - 0.096 kg
Housing (∅) - 48 mm
GO Plug- Gauges - 40.015 mm
NO-GO Plug- Gauges - 40.041 mm
Compatible Inner Ring - JR 35x40x20.5
Compalible Thin Thrust Plate - CP 40 60
Compalible Thick Thrust Plate - CP 3 40 60

Description of Prefix :
RAXF 700 - Needle combined bearing with thin outer ring, closed end
