Description
Brand - NADELLA
Item Number - RAXPZ 412 NADELLA
Category - Combined Bearings with Incorporate Thrust Plate

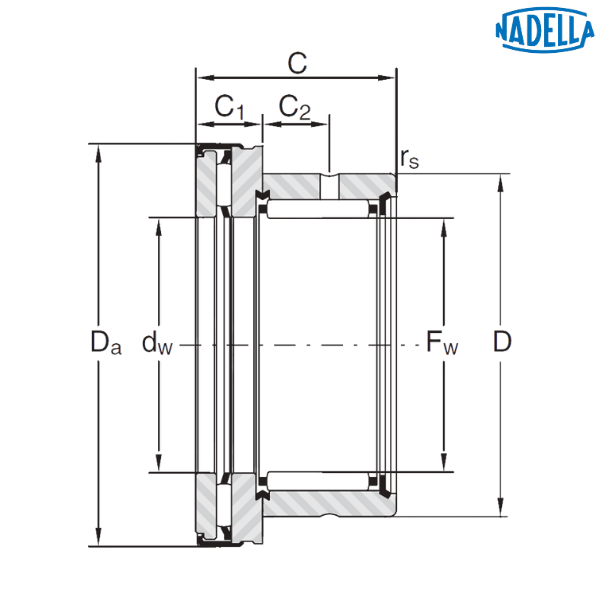

Principal Dimensions & Load Ratings (Metric) :
Diameter of the Inner Raceway (Fw) - 12 mm
Outer Diameter (D) - 21 mm
Width (C) - 21 mm
Shaft Diameter (∅) - 12 mm
Dimension (da) - 12 mm
Dimension (Da) - 26.4 mm
Dimension (C1) - 7 mm
Dimension (C2) - 6 mm
Minimum Chamfer Dimension (rs) - 0.35 mm
Radial Dynamic Load Rating (C) - 6.78 kN
Radial Static Load Rating (C0) - 9.03 kN
Axial Dynamic Load Rating (C) - 7.1 kN
Axial Static Load Rating (C) - 18.5 kN
Speed Rating - 13000 rpm
Weight - 0.038 kg
Description of Prefix :
RAXPZ 400 - Needle Thrust Bearing with retained thrust plate
♦ ♦ Images are for representation purposes only
Item Number - RAXPZ 412 NADELLA
Category - Combined Bearings with Incorporate Thrust Plate
Principal Dimensions & Load Ratings (Metric) :
Diameter of the Inner Raceway (Fw) - 12 mm
Outer Diameter (D) - 21 mm
Width (C) - 21 mm
Shaft Diameter (∅) - 12 mm
Dimension (da) - 12 mm
Dimension (Da) - 26.4 mm
Dimension (C1) - 7 mm
Dimension (C2) - 6 mm
Minimum Chamfer Dimension (rs) - 0.35 mm
Radial Dynamic Load Rating (C) - 6.78 kN
Radial Static Load Rating (C0) - 9.03 kN
Axial Dynamic Load Rating (C) - 7.1 kN
Axial Static Load Rating (C) - 18.5 kN
Speed Rating - 13000 rpm
Weight - 0.038 kg
Description of Prefix :
RAXPZ 400 - Needle Thrust Bearing with retained thrust plate
♦ ♦ Images are for representation purposes only
