Description
Brand - NADELLA
Item Number - RAXPZ 417 NADELLA
Category - Combined Bearings with Incorporate Thrust Plate

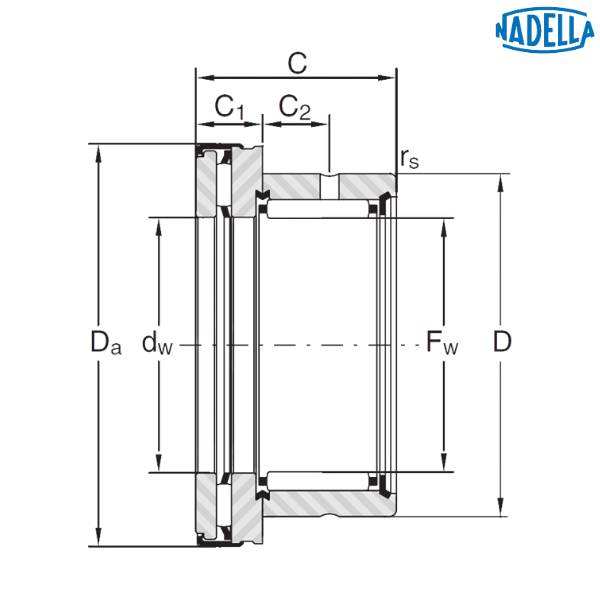

Principal Dimensions & Load Ratings (Metric) :
Diameter of the Inner Raceway (Fw) - 17 mm
Outer Diameter (D) - 26 mm
Width (C) - 23 mm
Shaft Diameter (∅) - 17 mm
Dimension (da) - 17 mm
Dimension (Da) - 30.4 mm
Dimension (C1) - 7 mm
Dimension (C2) - 8 mm
Minimum Chamfer Dimension (rs) - 0.65 mm
Radial Dynamic Load Rating (C) - 11.8 kN
Radial Static Load Rating (C0) - 16.3 kN
Axial Dynamic Load Rating (C) - 8.1 kN
Axial Static Load Rating (C) - 23 kN
Speed Rating - 10500 rpm
Weight - 0.048 kg
Description of Prefix :
RAXPZ 400 - Needle Thrust Bearing with retained thrust plate
♦ ♦ Images are for representation purposes only
