Description
Brand - NADELLA
Item Number - RAXPZ 425 NADELLA
Category - Combined Bearings with Incorporate Thrust Plate

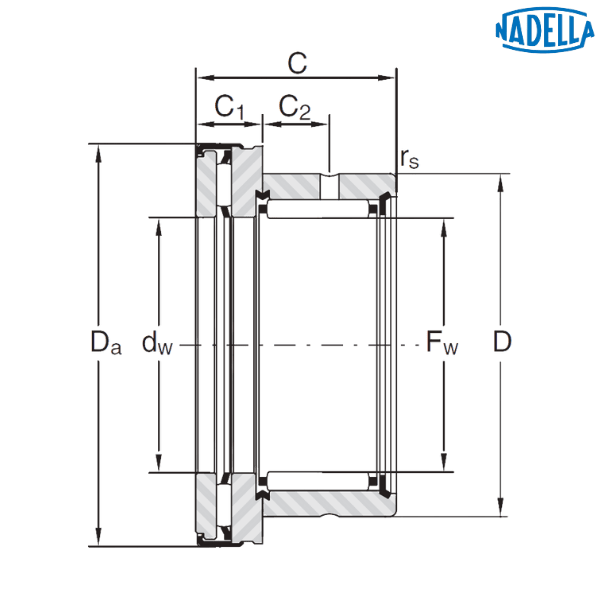

Principal Dimensions & Load Ratings (Metric) :
Diameter of the Inner Raceway (Fw) - 25 mm
Outer Diameter (D) - 37 mm
Width (C) - 27 mm
Shaft Diameter (∅) - 25 mm
Dimension (da) - 25 mm
Dimension (Da) - 43 mm
Dimension (C1) - 9 mm
Dimension (C2) - 9 mm
Minimum Chamfer Dimension (rs) - 0.85 mm
Radial Dynamic Load Rating (C) - 15.1 kN
Radial Static Load Rating (C0) - 26.2 kN
Axial Dynamic Load Rating (C) - 13.3 kN
Axial Static Load Rating (C) - 49 kN
Speed Rating - 7500 rpm
Weight - 0.118 kg
Description of Prefix :
RAXPZ 400 - Needle Thrust Bearing with retained thrust plate
♦ ♦ Images are for representation purposes only
Item Number - RAXPZ 425 NADELLA
Category - Combined Bearings with Incorporate Thrust Plate
Principal Dimensions & Load Ratings (Metric) :
Diameter of the Inner Raceway (Fw) - 25 mm
Outer Diameter (D) - 37 mm
Width (C) - 27 mm
Shaft Diameter (∅) - 25 mm
Dimension (da) - 25 mm
Dimension (Da) - 43 mm
Dimension (C1) - 9 mm
Dimension (C2) - 9 mm
Minimum Chamfer Dimension (rs) - 0.85 mm
Radial Dynamic Load Rating (C) - 15.1 kN
Radial Static Load Rating (C0) - 26.2 kN
Axial Dynamic Load Rating (C) - 13.3 kN
Axial Static Load Rating (C) - 49 kN
Speed Rating - 7500 rpm
Weight - 0.118 kg
Description of Prefix :
RAXPZ 400 - Needle Thrust Bearing with retained thrust plate
♦ ♦ Images are for representation purposes only
