Description
Brand - NADELLA
Item Number - RAXPZ 450 NADELLA
Category - Combined Bearings with Incorporate Thrust Plate

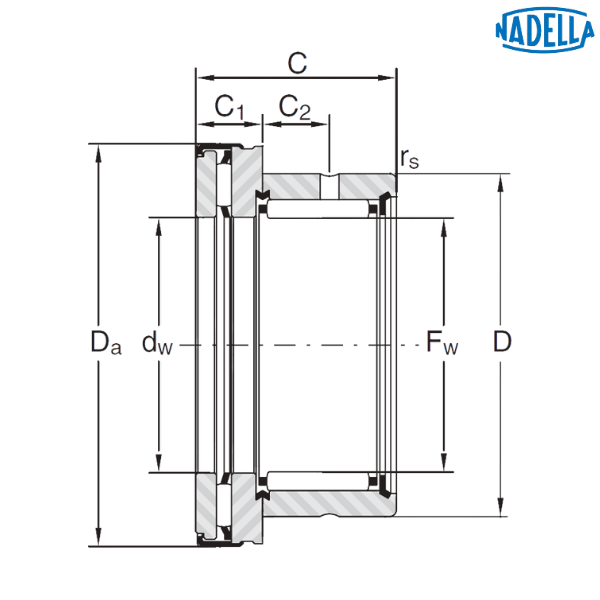

Principal Dimensions & Load Ratings (Metric) :
Diameter of the Inner Raceway (Fw) - 50 mm
Outer Diameter (D) - 62 mm
Width (C) - 30 mm
Shaft Diameter (∅) - 50 mm
Dimension (da) - 50 mm
Dimension (Da) - 71 mm
Dimension (C1) - 9 mm
Dimension (C2) - 11 mm
Minimum Chamfer Dimension (rs) - 1.3 mm
Radial Dynamic Load Rating (C) - 30.2 kN
Radial Static Load Rating (C0) - 68.5 kN
Axial Dynamic Load Rating (C) - 22.5 kN
Axial Static Load Rating (C) - 118 kN
Speed Rating - 4000 rpm
Weight - 0.245 kg
Description of Prefix :
RAXPZ 400 - Needle Thrust Bearing with retained thrust plate
♦ ♦ Images are for representation purposes only
Item Number - RAXPZ 450 NADELLA
Category - Combined Bearings with Incorporate Thrust Plate
Principal Dimensions & Load Ratings (Metric) :
Diameter of the Inner Raceway (Fw) - 50 mm
Outer Diameter (D) - 62 mm
Width (C) - 30 mm
Shaft Diameter (∅) - 50 mm
Dimension (da) - 50 mm
Dimension (Da) - 71 mm
Dimension (C1) - 9 mm
Dimension (C2) - 11 mm
Minimum Chamfer Dimension (rs) - 1.3 mm
Radial Dynamic Load Rating (C) - 30.2 kN
Radial Static Load Rating (C0) - 68.5 kN
Axial Dynamic Load Rating (C) - 22.5 kN
Axial Static Load Rating (C) - 118 kN
Speed Rating - 4000 rpm
Weight - 0.245 kg
Description of Prefix :
RAXPZ 400 - Needle Thrust Bearing with retained thrust plate
♦ ♦ Images are for representation purposes only
