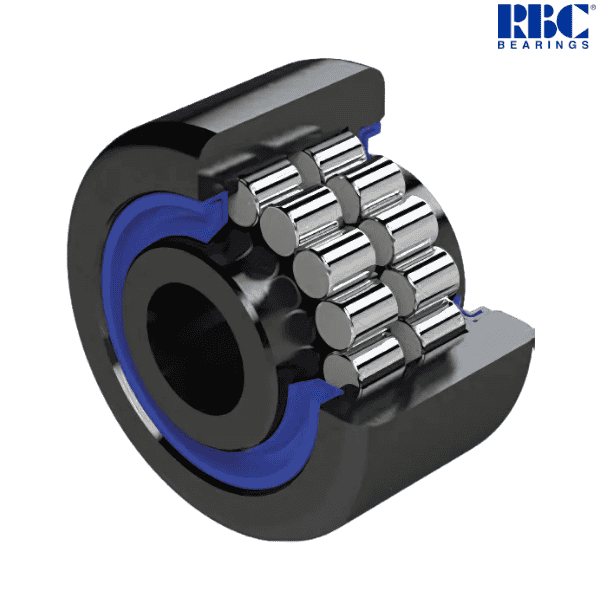

RBY 1 1/2 RBC

Brand - RBC
Item Number - RBY 1 1/2 RBC
Also Known As - RBY 1-1/2
Long-Life Yoke Rollers (with Crowned Outer Ring) - CRBY 1 1/2
Category - Long-Life Yoke Rollers

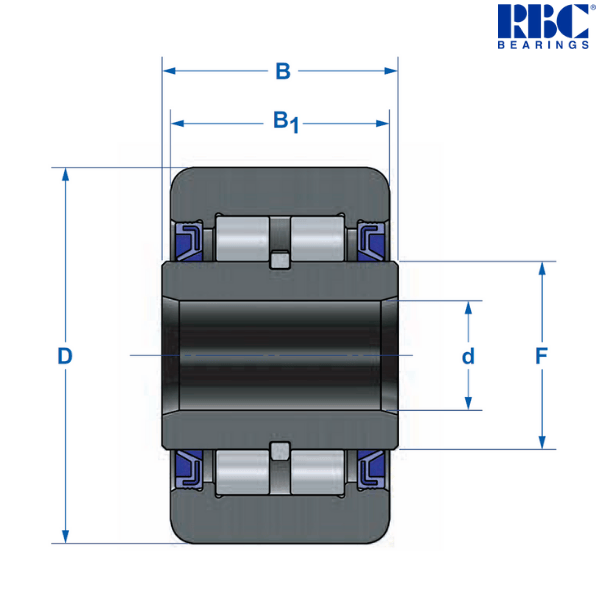

Principal Dimensions & Load Ratings (Imperial) :
Outside Diameter (D) - 1.5 (+ .000 to - .001) inch
Roller Width (B1) - 0.875 (+ .000 to - .005) inch
Crown Radius (CR) - 20 inch
Nominal Inside Diameter (d) - 0.4375 inch
Minimum Inside Diameter (d) - 0.4371 inch
Maximum Inside Diameter (d) - 0.4377 inch
Overall Width (B) - 0.9375 (+ .005 to - .010) inch
Shaft Shoulder (F) - 0.75 inch
Approximate Weight - 0.37 lbs
Speed Limit - 6200 rpm
Dynamic Capacity (C) - 6200 lbf
Static Capacity (C0) - 7000 lbf *
Maximum Allowable Load - 2400 lbf
Track Capacity @ 40 Rc - 3320 lbf
Maximum Transition Fit - 0.4372 inch
Minimum Transition Fit - 0.4368 inch
Maximum Press Fit - 0.438 inch
Minimum Press Fit - 0.4376 inch

Principal Dimensions & Load Ratings (Metric) :
Approximate Weight - 0.168 kg

Description of Prefixes :
RBY - Yoke Roller

Description of Possible Suffixes :
OH - Oil Holes
LU - Special Grease
NS - Without Seals
CR - Corrosion Resistant
NNW - 2 Jam Nuts & Washer

Other salient points to be noted :
• To specify RBC Roller® with lubrication holes, add OH suffix.
• Seals can be removed for flow-through lubrication.
• To specify RBC Roller® without seals, add NS suffix.

* Bearing Static Capacity provided for comparison only.
