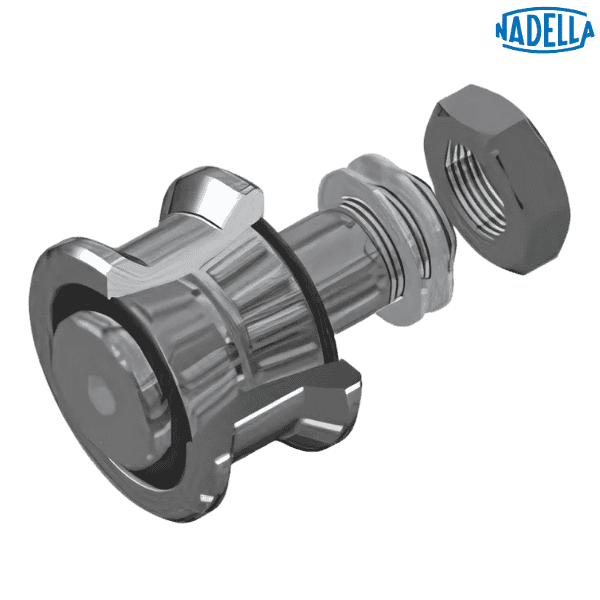

RKU 75 NADELLA

Brand - NADELLA
Item Number - RKU 75 NADELLA
Category - Guide Roller with Tapered Roller Bearing (Concentric)

Principal Dimensions & Load Ratings (Metric):

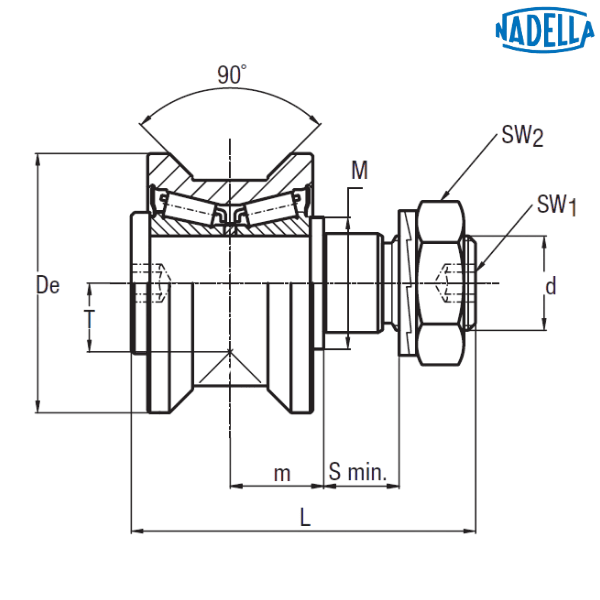

Dimension (De) - 75 mm
Housing Bore (d1) - 36 (H7) mm
Dimension (d) - M30 x 1.5
Dimension (T) - 23.7 mm
Dimension (m) - 27 mm
Minimum Dimension (S) - 19 mm
Dimension (P) - 21.6 mm
Dimension (L) - 100 mm
Dimension (A) - 45 mm
Dimension (B) - 55 mm
Dimension (l1) - 18 mm
Dimension (M) - 44 mm
Dimension (SW1) - 12 mm
Dimension (SW2) - 46 mm
Dimension (k) - 1 mm
Dynamic Load (Cw*) - 69000 N
Radial Load Limit (Fr) - 28500 N
Axial Load Limit (Fa) - 10200 N
Life Coefficient (X) - 1 mm
Life Coefficient (Y) - 3.4 mm
Torque Wrench Settings** - 300 Nm
Weight - 1.6 kg

Description of Suffixes and Prefixes:
RKU - Guide rollers with tapered roller bearings, for GU rails of Heavy-Line system

Other salient points to be noted:
• Standard seals: material NBR, RS type
• On request, the guide rollers can be supplied with external parts in stainless steel (suffix NX) and with Viton seals for operating temperatures up to 120°C (suffix V, not available for RKU 115). Internal rolling elements in standard bearing steel
• The guide rollers include self-locking washers and hexagonal nut (DIN 439B) for fitting
• Pressure angle α for load calculation: 45°
• The sides of the race are convex with radius R = 400

* Cw basic load for 100 km
** The torque wrench settings are given for non-lubricated threads; for lubricated threads, multiply figure by 0.8
