Description
Brand - NADELLA
Item Number - RNA 1009 NADELLA
Category - Full Complement Needle Roller Bearing without Inner Ring
Also Known As - RNA1009
Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 12.1 mm
Diameter of the Inner Raceway (Fw) - 12.1 mm
Outer Diameter (D) - 22 mm
Width (C) - 12 mm
Dimension (Ew) - 17.1 mm
Minimum Chamfer Dimension (rs) - 0.35 mm
Dynamic Load Rating (C) - 5.6 kN
Static Load Rating (C0) - 7.4 kN
Speed Rating with Oil - 31000 rpm
Speed Rating with Grease - 20000 rpm
Weight - 0.018 kg
Description of Prefix :
RNA - Full complement needle bearing without inner ring

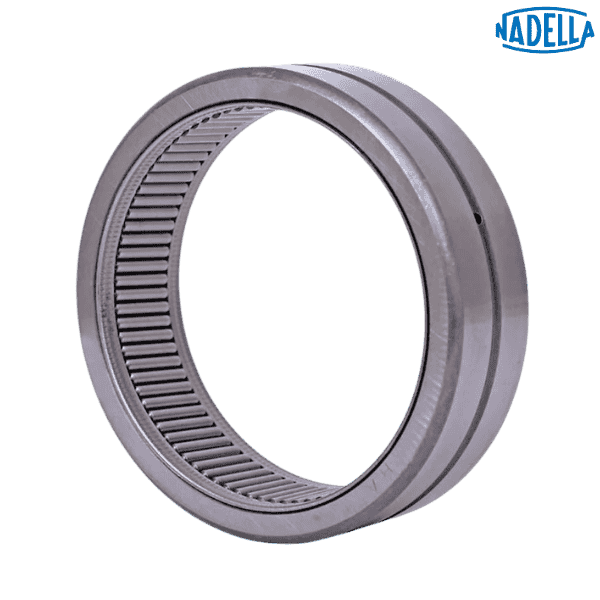

♦ ♦ Images are for representation purposes only
