Description
Brand - NADELLA
Item Number - RNA11009 B6 NADELLA

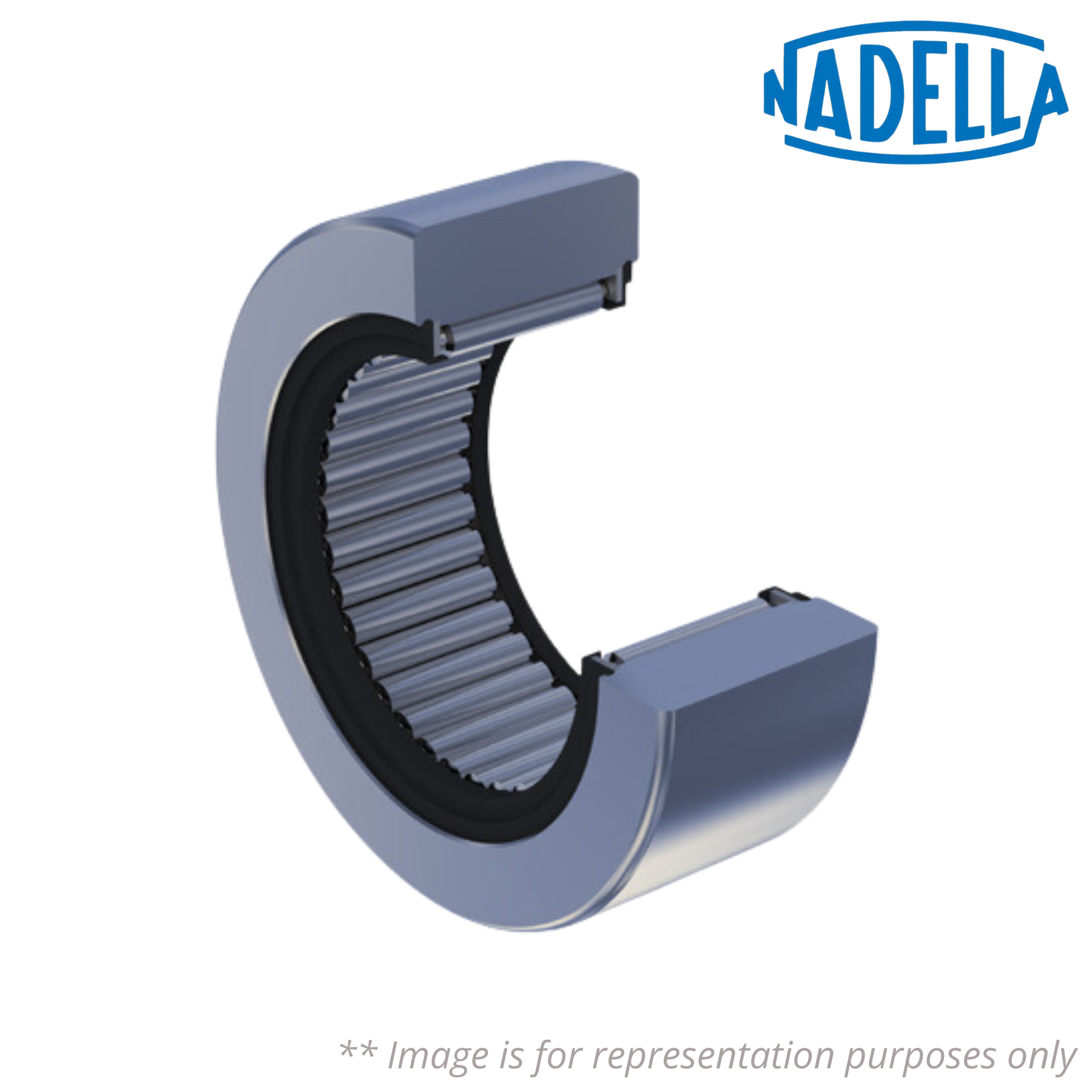

Category - Full Complement Needle Rollers without Inner Ring
Also Known As - RNA11009B6

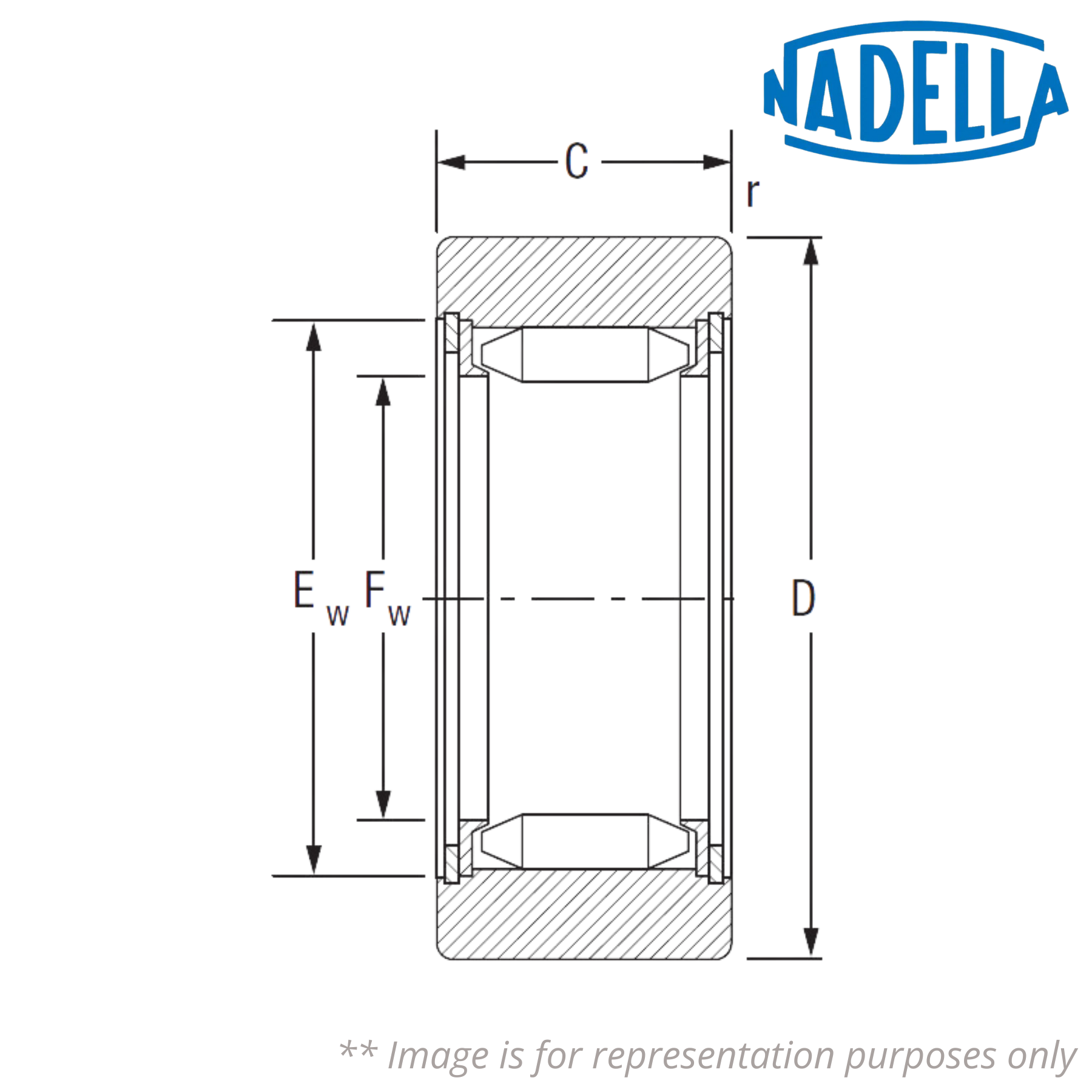

Outer Diameter (D) mm - 24
Recommended Tolerance Per Fw Diameter of the Pivot without the Use of Inner Ring (mm) - 12.1
Tolerances on the D Dimension (mm) - 24
C nom. (mm) - 12
C tol. (mm) - 0 -0.10
Ew (mm) - 17.1
r (mm) - 0.35
Weight (kg) - 27
Load Coefficient (Cw) N - 6200
Dynamic Load Coefficient (Fr) N - 4700
Static Load Coefficient (For) N - 5600
Speed Limit with Grease (min-1) - 5800
