S 112 LW RBC

Brand - RBC
Item Number - S 112 LW RBC
Also Known As - S112LW
Cam Followers (Slotted Head and Sealed) - S 112 L
Cam Followers (Slotted Head) - S 112
Basic Number - (-112)
Category - Cam Followers with Standard Stud (Hexlube® Socket Head and Sealed)

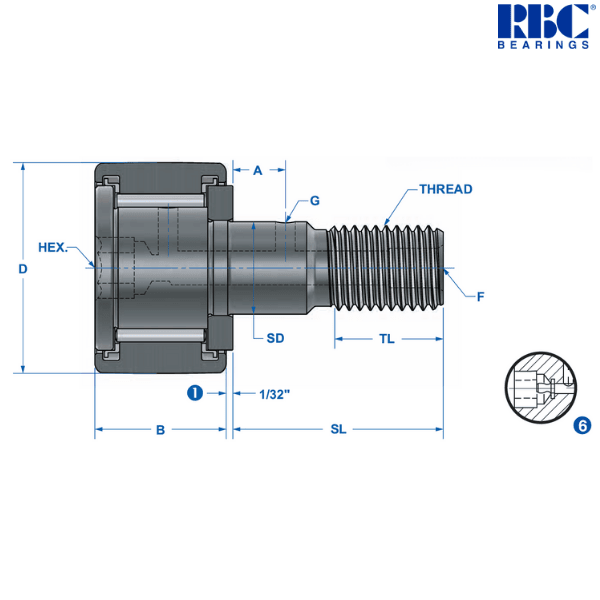

Principal Dimensions & Load Ratings (Imperial) :
Nominal Size - 3.5 inch
Outside Diameter (D) - 3.5 (+ .000 to - .001) inch
Roller Width (B) - 2 (+ .000 to - .005) inch
Shank Diameter (SD) - 1.375 (+ .001 to - .000) inch
Shank Length (SL) - 2.75 inch
Eff. Thread Length (TL) - 1.375 inch
Thread Class 2A - 1 3/8-12
Approximate Weight - 6.22 lbs
Lube Fitting (F) - 1/4 inch *
Loc. (A) - 0.687 inch
Diameter (G) - 0.187 inch
Socket Head Wrench Size - 0.625 inch
Speed Limit - 1400 rpm
Dynamic Capacity (C) - 24300 lbf
Static Capacity (C0) - 54600 lbf ***
Maximum Allowable Load - 24750 lbf
Track Capacity @ 40 Rc - 17300 lbf
Maximum Clamping Torque - 2500 in-lbf ****
Hsg. Bore - 1.375 (+ .0005 to - .0000) inch
Minimum Boss Diameter - 2.39 inch

Principal Dimensions & Load Ratings (Metric) :
Approximate Weight - 2.821 kg

Replaces (Direct Interchange) :
McGill - CF-3 1/2-SB
KOYO - CRSB-56

Replaces :
RBC - S112, S112L
McGill - CF-3 1/2, CF-3 1/2-S
KOYO - CR-56, CRS-56

Description of Suffixes and Prefixes :
S - Standard Stud (Screwdriver Slot Head)
L - Sealed
W - Hex Head with Hex Lube Feature

Description of Possible Suffixes :
NNW - 2 Jam Nuts & Washer

Other salient points to be noted :
• (1) 1/16" for sizes S 160 LW and larger. (Refer to the Image)

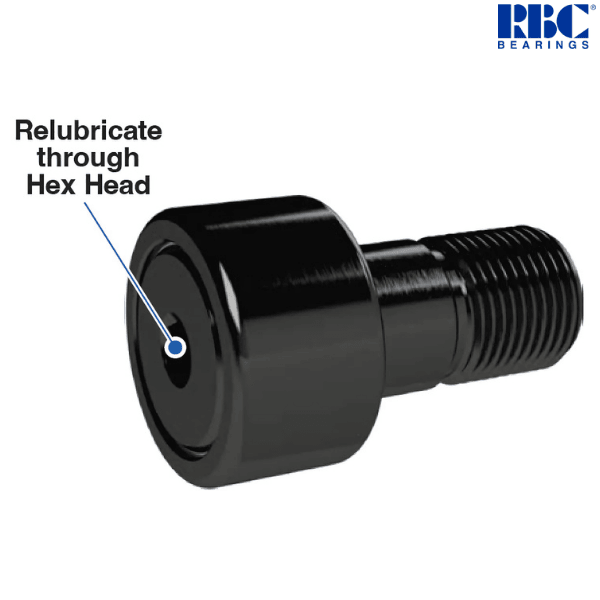

• (6) HexLube® Cam Followers can be regreased through the hex head using a Lincoln #5803 or Alemite #B6783 needle nozzle adapter. (Refer to the Image)

* Sizes S 16 LW through S 22 LW cannot be relubricated.
*** Bearing Static Capacity provided for comparison only.
**** Torque may be doubled for completely dry threads.

♦ ♦ Images are for representation purposes only
