S 20 LWX RBC

Brand - RBC
Item Number - S 20 LWX RBC
Also Known As - S20LWX Basic Number - (-20)
CamCentric™ Adjustable Cam Followers (Crowned Outer Ring) - CS 20 LWX
Category - CamCentric™ Adjustable Cam Followers (Cylindrical Outer Ring)

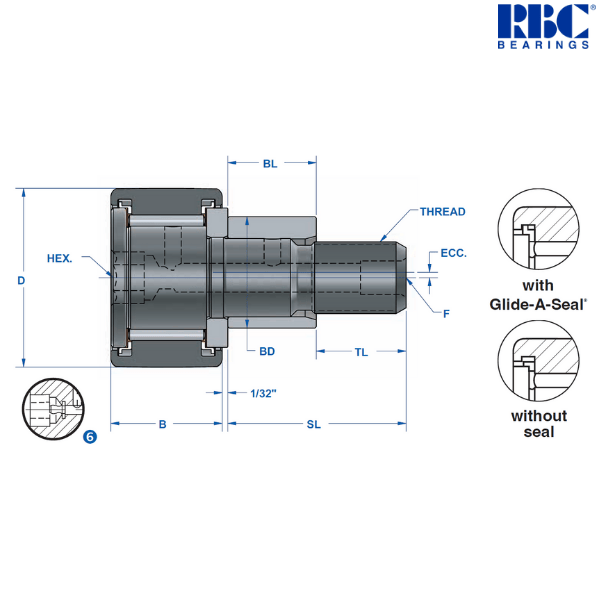

Principal Dimensions & Load Ratings (Imperial) :
Nominal Size - 0.625 inch
Outside Diameter (D) - 0.625 (+ .000 to - .001) inch
Roller Width (B) - 0.438 (+.000 to - .005) inch
Crown Radius (CR) - 8 inch
BD - 0.375 (+ .000 to - .002) inch
BL - 0.437 (+ .000 to - .010) inch *
Eccentricty (ECC) - 0.015 inch
Shank Length (SL) - 0.75 inch
Eff. Thread Length (TL) - 0.312 inch
Thread Class 2A - 1/4-28
Approximate Weight - 0.056 lbs
Lube Fitting (F) - ** inch
Socket Head Wrench Size - 0.125 inch
Speed Limit - 5000 rpm
Dynamic Capacity (C) - 1060 lbf
Static Capacity (C0) - 1700 lbf ***
Maximum Allowable Load - 610 lbf
Track Capacity @ 40 Rc - 770 lbf
Maximum Clamping Torque - 20 in-lbf ****
Hsg. Bore - 0.375 inch

Principal Dimensions & Load Ratings (Metric) :
Approximate Weight - 0.025 kg

Replaces (Direct Interchange) :
McGill - CFE-5/8-SB
KOYO - CRSBE-10-1

Description of Suffixes and Prefixes :
S - Standard Stud (Screwdriver Slot Head)
L - Sealed
W - Hex Head with Hex Lube Feature
X - Eccentric Bushing

Description of Possible Suffixes :
NNW - 2 Jam Nuts & Washer

Other salient points to be noted :
• Do not clamp eccentric bushing.
• Eccentric bushing press fitted and not heat treated to permit dowel or set screw engagement.

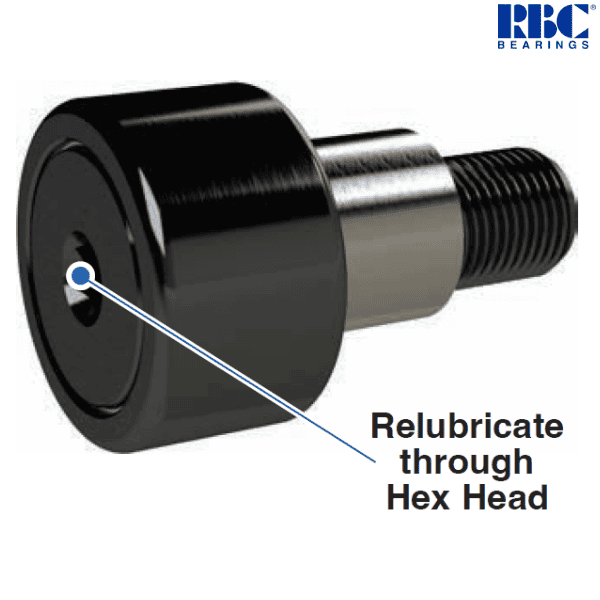

• (6) HexLube ® Cam Followers can be regreased through the hex head using a Lincoln #5803 or Alemite #B6783 needle nozzle adapter. (Refer to the Image)

* For positive clamping action use a housing thickness tolerance of +0.010/-0.000 inches.
** Sizes S 16 LWX through S 22 LWX and CS 16 LWX through CS 22 LWX cannot be relubricated.
*** Bearing Static Capacity provided for comparison only.
**** Bearing Static Capacity provided for comparison only.

♦ ♦ Images are for representation purposes only
