| Outer Diameter | 609.6 mm |
| Height | 253.66 mm |
| Feature Diameter | 585.0 mm |
| Bearing Weight | 494.0 kg |
| Basic Static Load Rating, Axial | 48930000.0 N |
| Outer Diameter Of Shaft Washer | 710.006 mm |
| Shaft Washer Height | 38.037 mm |
| Spherical Radius | 1524.0 mm |
| Maximum Housing Chamfer Diameter | 6.6 mm |
Description

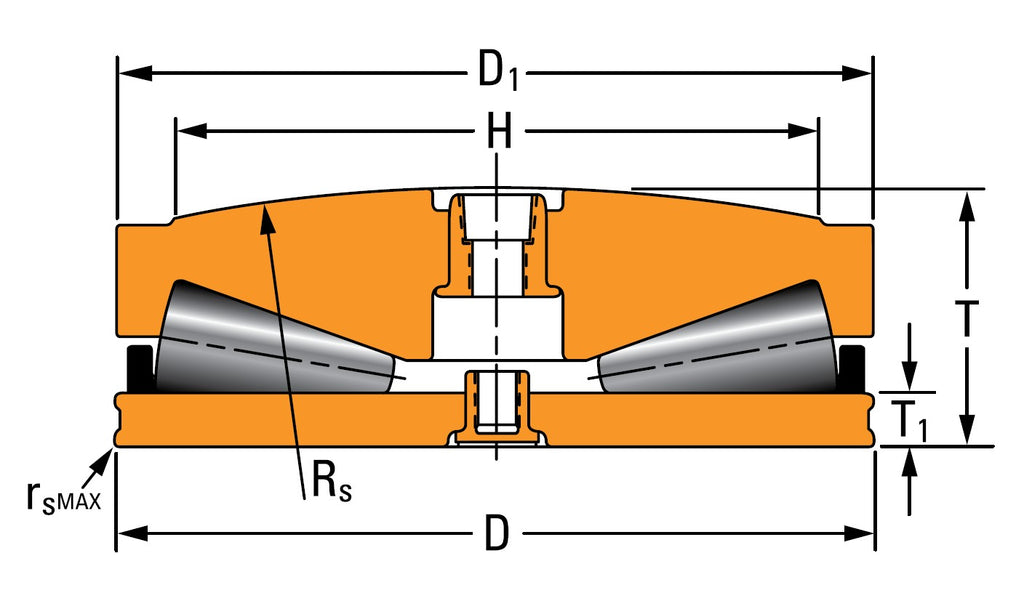

Dimension Denotation of Diagram :
d – Inner Diameter
D – Outer Diameter
D1 – Outer Diameter Of Shaft Washer
T – Height
H – Feature Diameter
Rs – Spherical Radius
R – Maximum Shaft Chamfer Diameter
rs max – Maximum Housing Chamfer Diameter
Other salient points to be noted:
Engineered for the demanding environments of the metals industry, the Timken TTHDFLSX-2 thrust tapered roller bearing is designed for rolling mill screw-down systems. Unlike full-complement models, this specific variant incorporates a cage to maintain roller spacing and optimize performance under specific operational conditions.
-
Industry Specific: Purpose-built for rolling mill screw-down systems.
-
Caged Design: Utilizes a cage to guide rollers, distinct from the standard cageless screwdown bearings.
-
Unique Profile: Features one upper tapered race with a special convex profile.
-
Base Design: Equipped with one lower flat race.
** Images are for representation purposes only
