S 56 LW RBC

Brand - RBC
Item Number - S 56 LW RBC
Also Known As - S56LW
Cam Followers (Slotted Head and Sealed) - S 56 L
Cam Followers (Slotted Head) - S 56
Basic Number - (-56)
Category - Cam Followers with Standard Stud (Hexlube® Socket Head and Sealed)

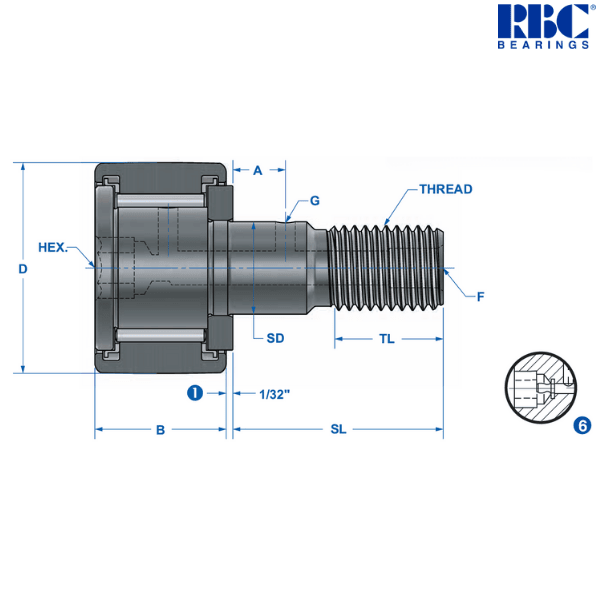

Principal Dimensions & Load Ratings (Imperial) :
Nominal Size - 1.75 inch
Outside Diameter (D) - 1.75 (+ .000 to - .001) inch
Roller Width (B) - 1 (+ .000 to - .005) inch
Shank Diameter (SD) - 0.75 (+ .001 to - .000) inch
Shank Length (SL) - 1.75 inch
Eff. Thread Length (TL) - 0.875 inch
Thread Class 2A - 3/4-16
Approximate Weight - 0.83 lbs
Lube Fitting (F) - 3/16 inch *
Loc. (A) - 0.437 inch
Diameter (G) - 0.125 inch
Socket Head Wrench Size - 0.3125 inch
Speed Limit - 2600 rpm
Dynamic Capacity (C) - 6400 lbf
Static Capacity (C0) - 12400 lbf ***
Maximum Allowable Load - 7800 lbf
Track Capacity @ 40 Rc - 4550 lbf
Maximum Clamping Torque - 750 in-lbf ****
Hsg. Bore - 0.75 (+ .0005 to - .0000) inch
Minimum Boss Diameter - 1.05 inch

Principal Dimensions & Load Ratings (Metric) :
Approximate Weight - 0.376 kg

Replaces (Direct Interchange) :
McGill - CF-1 3/4-SB
KOYO - CRSB-28

Replaces :
RBC - S56, S56L
McGill - CF-1 3/4, CF-1 3/4-S
KOYO - CR-28, CRS-28

Description of Suffixes and Prefixes :
S - Standard Stud (Screwdriver Slot Head)
L - Sealed
W - Hex Head with Hex Lube Feature

Description of Possible Suffixes :
NNW - 2 Jam Nuts & Washer

Other salient points to be noted :
• (1) 1/16" for sizes S 160 LW and larger. (Refer to the Image)

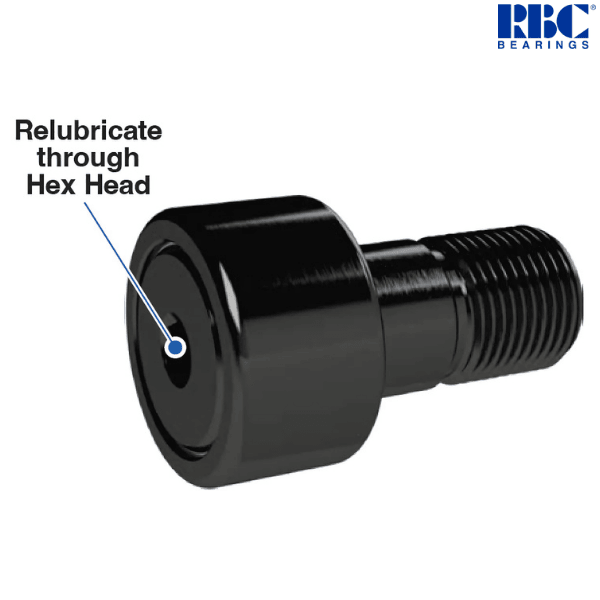

• (6) HexLube® Cam Followers can be regreased through the hex head using a Lincoln #5803 or Alemite #B6783 needle nozzle adapter. (Refer to the Image)

* Sizes S 16 LW through S 22 LW cannot be relubricated.
*** Bearing Static Capacity provided for comparison only.
**** Torque may be doubled for completely dry threads.

♦ ♦ Images are for representation purposes only
