Description
Brand - FAG
Item Number - S1B-1108-FL FAG

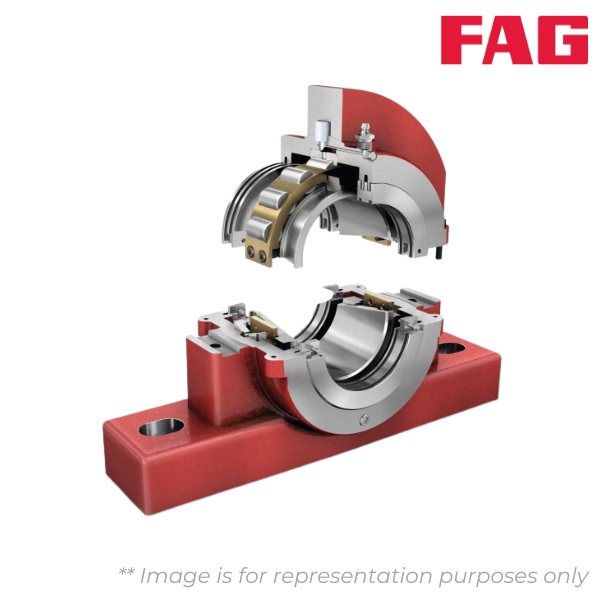

Category - Split Cylindrical Roller Bearing Housing

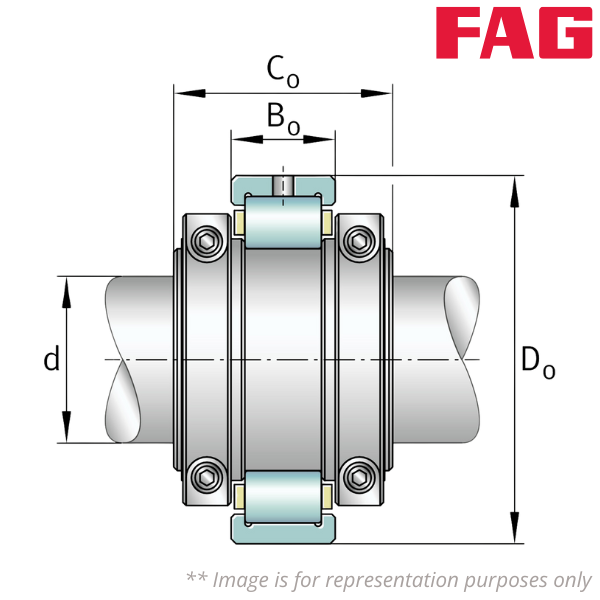

Shaft Diameter (d) inch - 11.5
Weight (kg) - 55.791816
Bearing Float - S1B-1108-FL
Bearing Held - S1B-1108-HD
Basic Dynamic Radial Load Rating (Cr) lbs - 163980
Basic Static Radial Load Rating (C0r) lbs - 331729
Basic Dynamic Axial Load Rating (Ca) lbs - 9747
Maximum Limiting Speed (rpm) - 915
Outside Diameter Bearing (Do) inch - 17.25
Width Inner Ring (Co) inch - 5.625
Width Outer Ring (Bo) inch - 2.938
Housing Group - 1200 Grp
