Description
Brand - FAG
Item Number - S1B-130MM-FL FAG

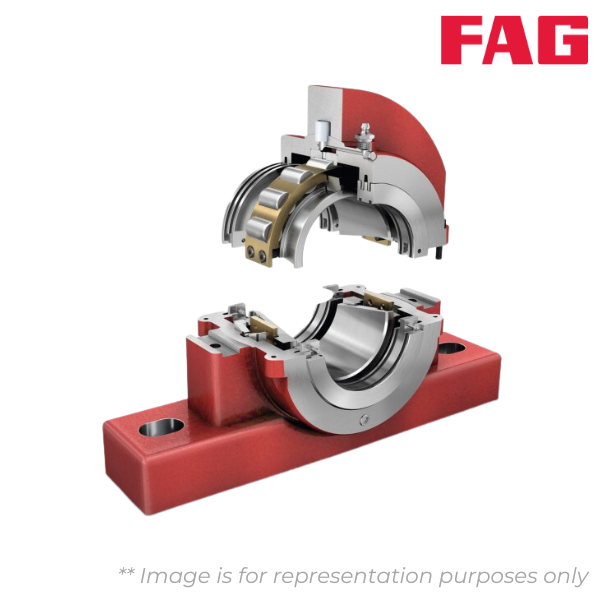

Category - Split Cylindrical Roller Bearing Housing

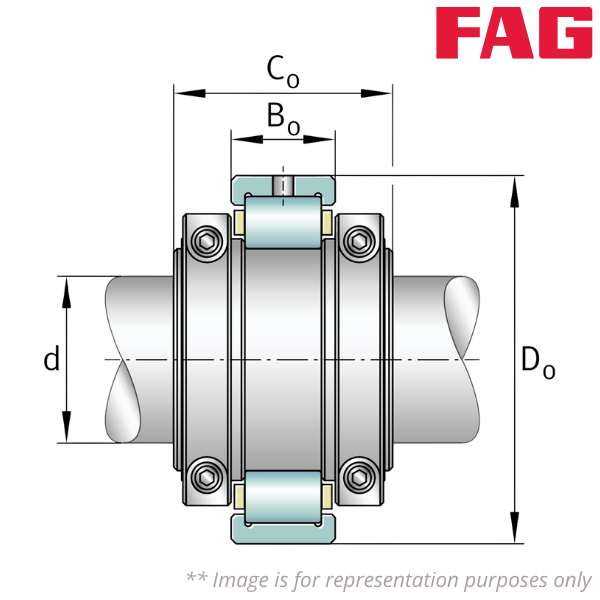

Shaft Diameter (d) mm - 130
Weight (kg) - 11.566596
Bearing Float - S1B-130MM-FL
Bearing Held - S1B-130MM-HD
Basic Dynamic Radial Load Rating (Cr) lbs - 72854
Basic Static Radial Load Rating (C0r) lbs - 111440
Basic Dynamic Axial Load Rating (Ca) lbs - 685
Maximum Limiting Speed (rpm) - 1940
Outside Diameter Bearing (Do) inch - 8.75
Width Inner Ring (Co) inch - 3.531
Width Outer Ring (Bo) inch - 2.125
Housing Group - 500 Grp
