Description
Brand - FAG
Item Number - S1B-150MM-FL FAG

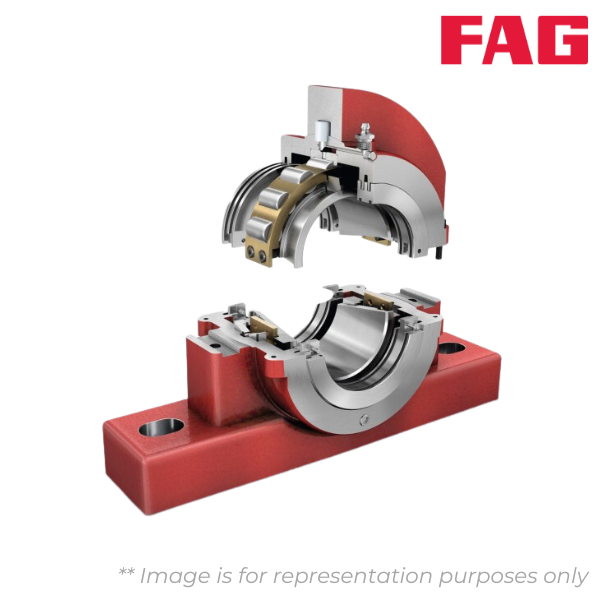

Category - Split Cylindrical Roller Bearing Housing

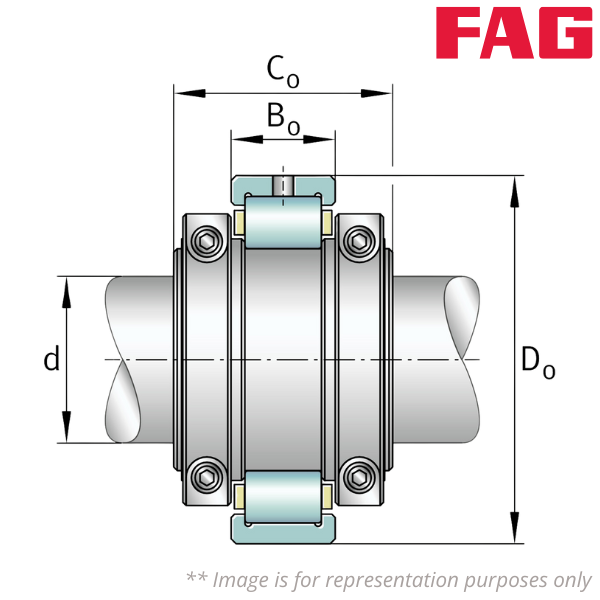

Shaft Diameter (d) mm - 150
Weight (kg) - 16.8282632
Bearing Float - S1B-150MM-FL
Bearing Held - S1B-150MM-HD
Basic Dynamic Radial Load Rating (Cr) lbs - 87637
Basic Static Radial Load Rating (C0r) lbs - 141821
Basic Dynamic Axial Load Rating (Ca) lbs - 762
Maximum Limiting Speed (rpm) - 1670
Outside Diameter Bearing (Do) inch - 10
Width Inner Ring (Co) inch - 3.875
Width Outer Ring (Bo) inch - 2.188
Housing Group - 600 Grp
