Description
Brand - FAG
Item Number - S1B-360MM-FL FAG

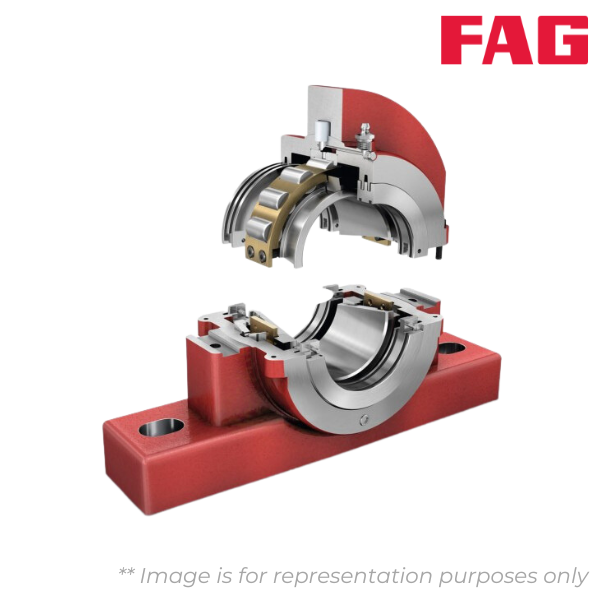

Category - Split Cylindrical Roller Bearing Housing

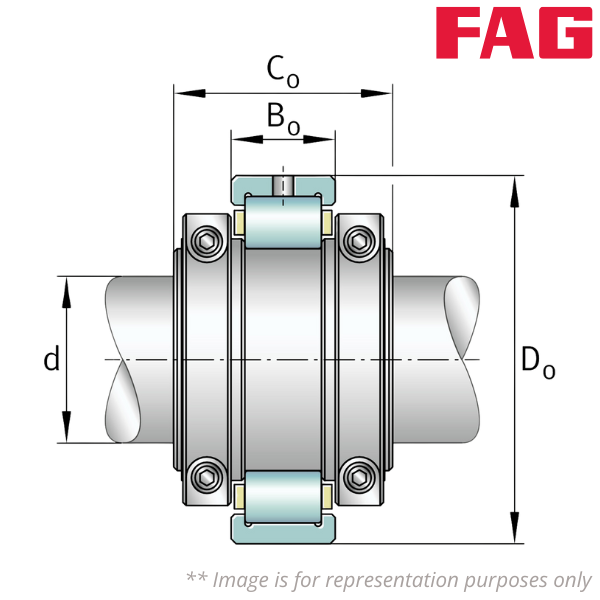

Shaft Diameter (d) mm - 360
Weight (kg) - 68.492392
Bearing Float - S1B-360MM-FL
Bearing Held - S1B-360MM-HD
Basic Dynamic Radial Load Rating (Cr) lbs - 203593
Basic Static Radial Load Rating (C0r) lbs - 436961
Basic Dynamic Axial Load Rating (Ca) lbs - 10545
Maximum Limiting Speed (rpm) - 753
Outside Diameter Bearing (Do) inch - 20.5
Width Inner Ring (Co) inch - 5.509
Width Outer Ring (Bo) inch - 3
Housing Group - 1500 Grp
