Description
Brand - FAG
Item Number - S1B-408-FL FAG

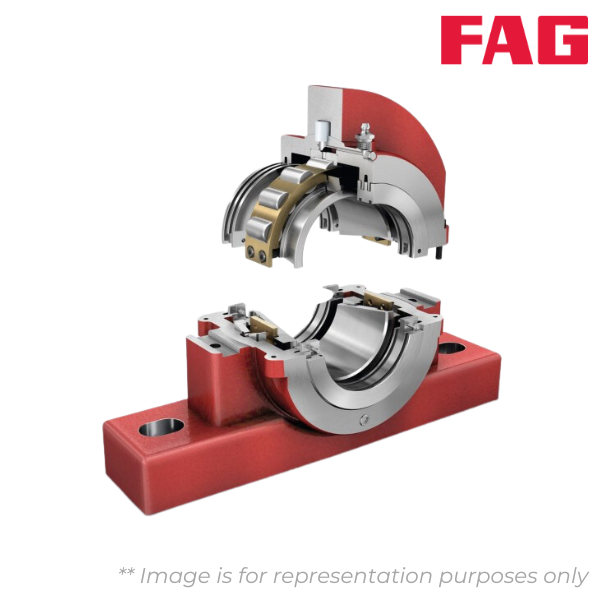

Category - Split Cylindrical Roller Bearing Housing

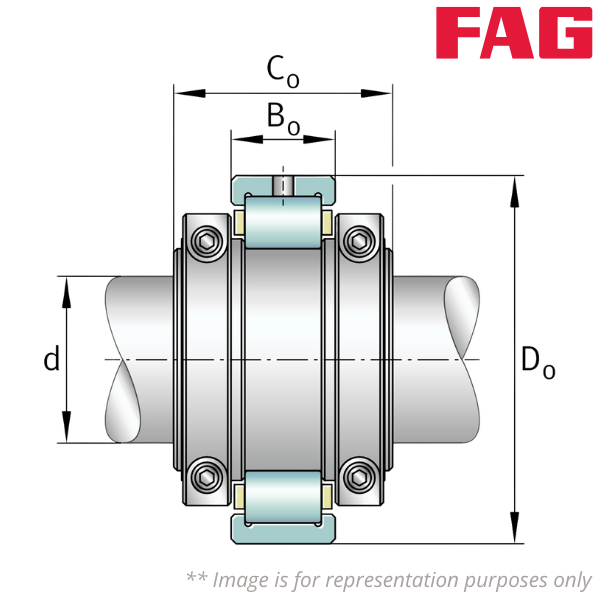

Shaft Diameter (d) inch - 4.5
Weight (kg) - 9.4347136
Bearing Float - S1B-408-FL
Bearing Held - S1B-408-HD
Basic Dynamic Radial Load Rating (Cr) lbs - 63235
Basic Static Radial Load Rating (C0r) lbs - 94671
Basic Dynamic Axial Load Rating (Ca) lbs - 654
Maximum Limiting Speed (rpm) - 2140
Outside Diameter Bearing (Do) inch - 8
Width Inner Ring (Co) inch - 3.342
Width Outer Ring (Bo) inch - 1.844
Housing Group - 408 Grp
