Description
Brand - FAG
Item Number - S1BCF-303-HD FAG

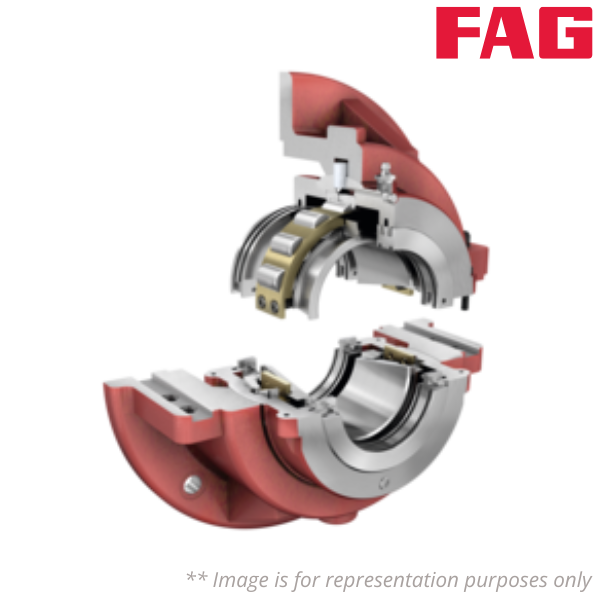

Category - Plummer Block Flanged Housing Unit
Shaft Diameter (d) inch - 3.1875
Weight (m) kg - 36.28736
Complete Unit Float - S1BCF-303-FL
Complete Unit Held - S1BCF-303-HD
Housing Deignation - FH-5

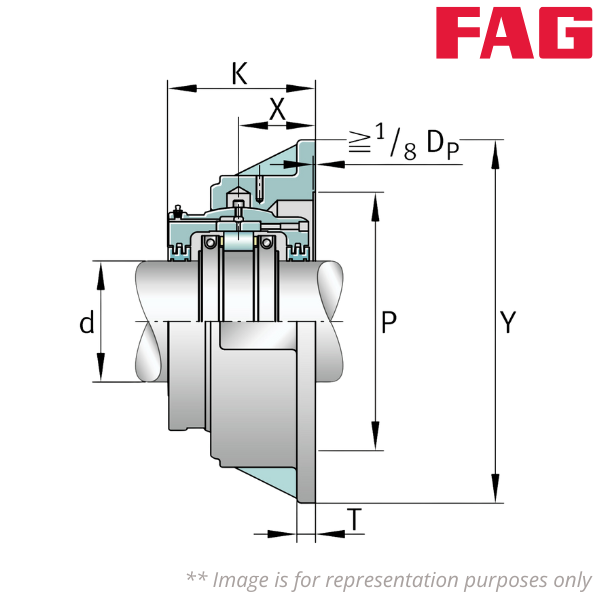

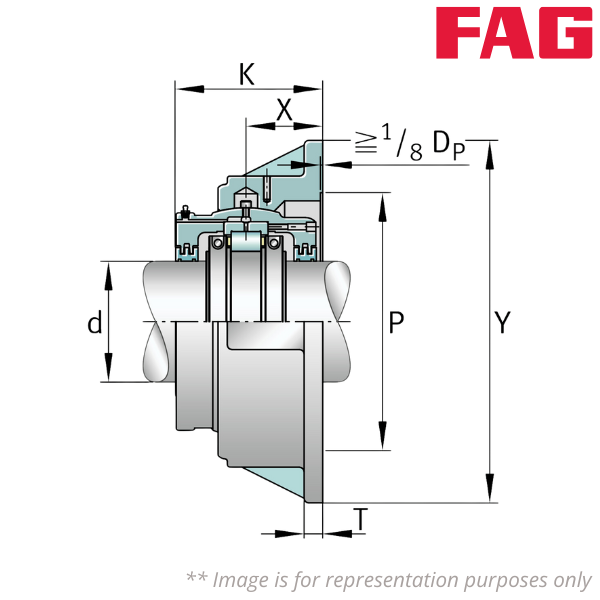

Flange Outside Diameter (Y) inch - 13
Width (K) inch - 5.8125
Bearing Centerline Location (X) inch - 3.125

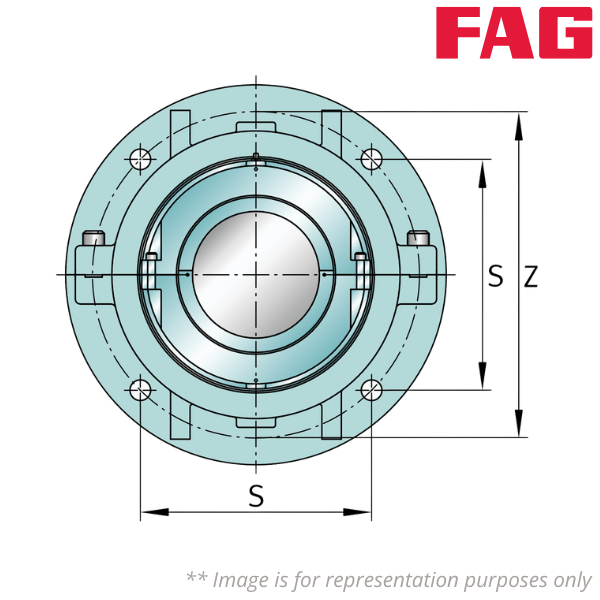

Bolt Circle Diameter (Z) inch - 10.75
Bolt Hole Distance (S) inch - 7.625
Thickness of Flange (T) inch - 0.75
Pilot Counterbore Diameter (P) inch - 8.5
Mounting Bolt Number (S) - 4
Mounting Bolt Diameter (S) inch - 0.5
