Description
Brand - FAG
Item Number - S1BCF-504-HD FAG

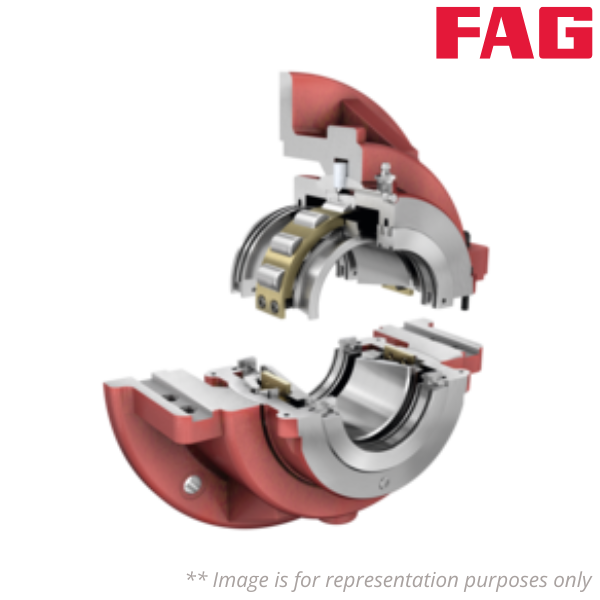

Category - Plummer Block Flanged Housing Unit
Shaft Diameter (d) inch - 5.25
Weight (m) kg - 82.0547928
Complete Unit Float - S1BCF-504-FL
Complete Unit Held - S1BCF-504-HD
Housing Deignation - FH-9

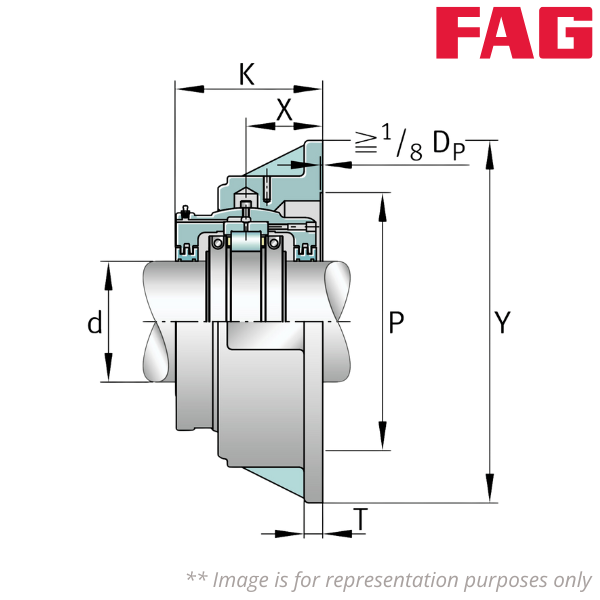

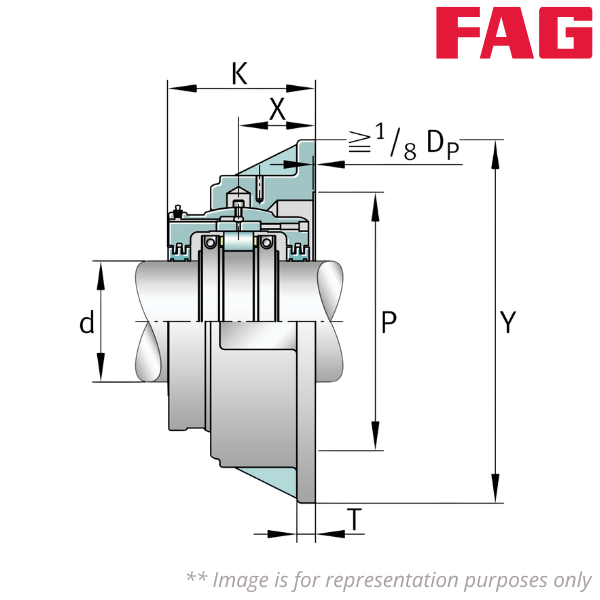

Flange Outside Diameter (Y) inch - 17.5
Width (K) inch - 7.125
Bearing Centerline Location (X) inch - 3.875

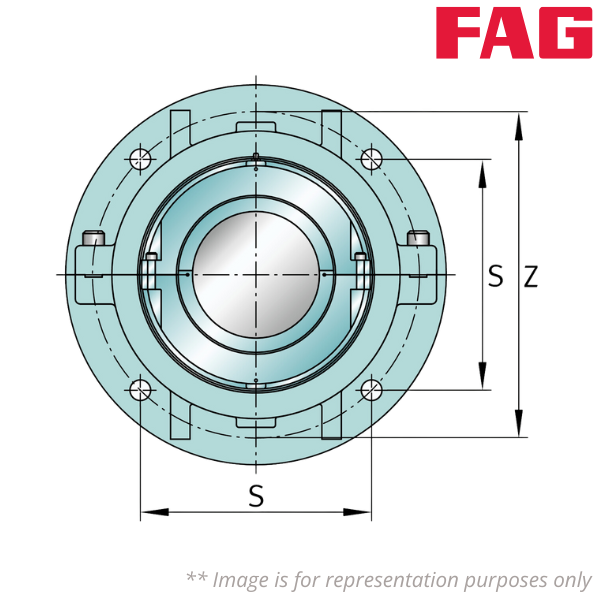

Bolt Circle Diameter (Z) inch - 15.125
Bolt Hole Distance (S) inch - 10.6875
Thickness of Flange (T) inch - 1
Pilot Counterbore Diameter (P) inch - 12.5
Mounting Bolt Number (S) - 4
Mounting Bolt Diameter (S) inch - 0.875
