Description
Brand - FAG
Item Number - S2B-160MM-FL FAG

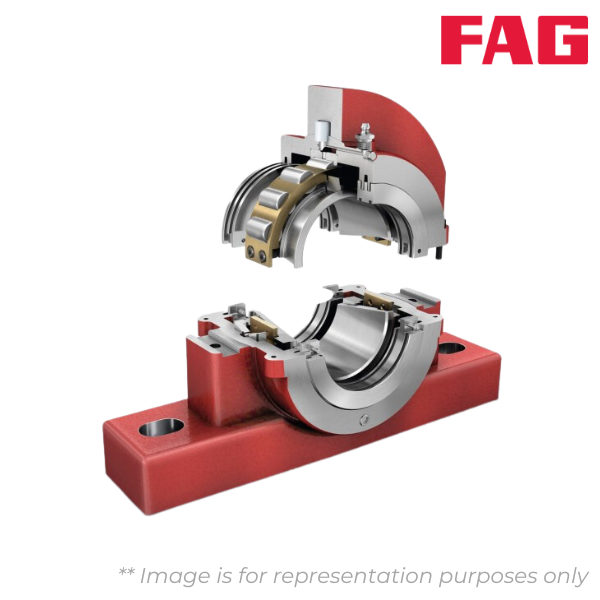

Category - Split Cylindrical Roller Bearing Housing
Shaft Diameter (d) mm - 160
Weight (kg) - 42.410852
Bearing Float - S2B-160MM-FL
Bearing Held - S2B-160MM-HD
Basic Dynamic Radial Load Rating (Cr) lbs - 156220
Basic Static Radial Load Rating (C0r) lbs - 237758
Basic Dynamic Axial Load Rating (Ca) lbs - 10907
Maximum Limiting Speed (rpm) - 1407

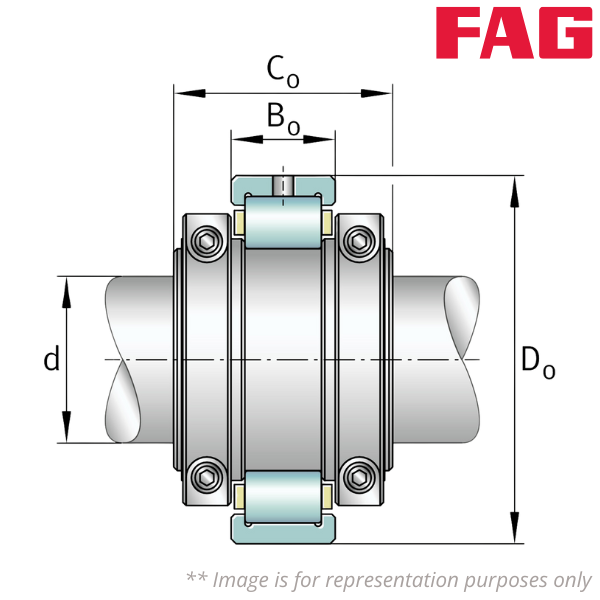

Outside Diameter Bearing (Do) inch - 12.5
Width Inner Ring (Co) inch - 5.5
Width Outer Ring (Bo) inch - 3.281
Housing Group - 608 Grp
