Description
Brand - FAG
Item Number - S2B-400-FL FAG

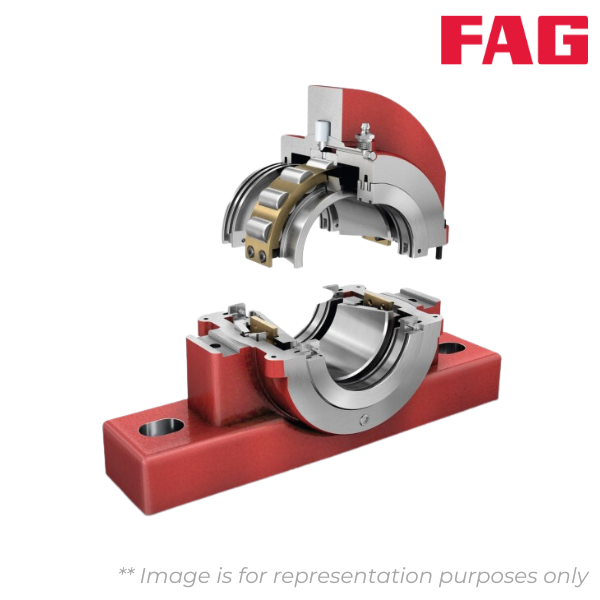

Category - Split Cylindrical Roller Bearing Housing

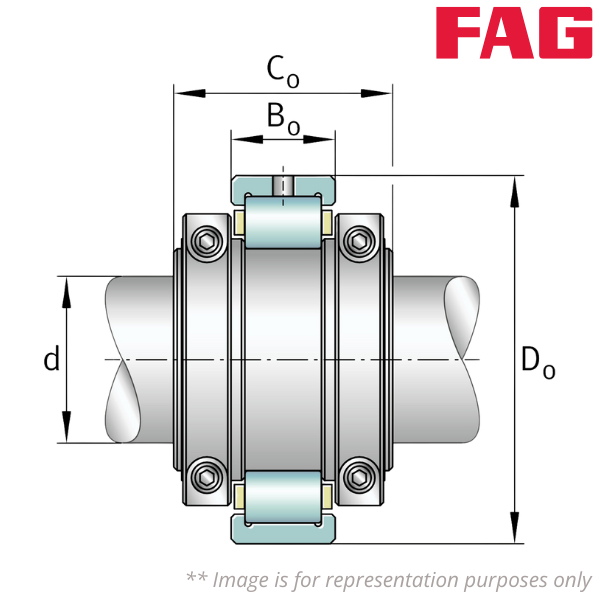

Shaft Diameter (d) inch - 4
Weight (kg) - 9.8883056
Bearing Float - S2B-400-FL
Bearing Held - S2B-400-HD
Basic Dynamic Radial Load Rating (Cr) lbs - 74163
Basic Static Radial Load Rating (C0r) lbs - 105062
Basic Dynamic Axial Load Rating (Ca) lbs - 761
Maximum Limiting Speed (rpm) - 2230
Outside Diameter Bearing (Do) inch - 7.625
Width Inner Ring (Co) inch - 3.622
Width Outer Ring (Bo) inch - 2.031
Housing Group - 400 Grp
