Description
Brand - FAG
Item Number - S2B-715-FL FAG

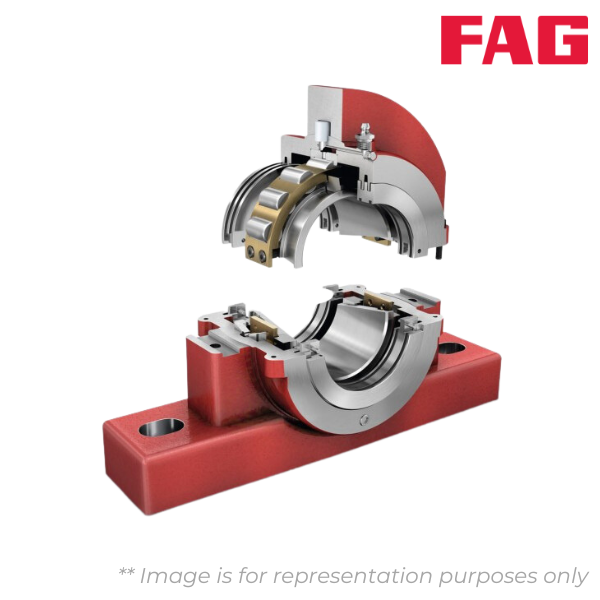

Category - Split Cylindrical Roller Bearing Housing

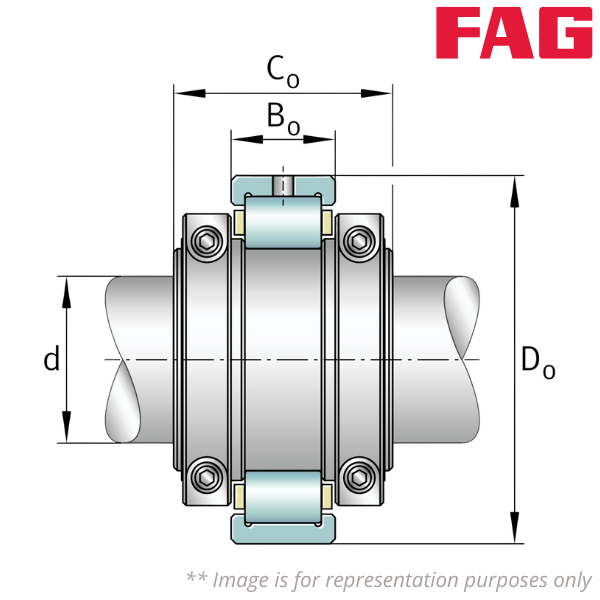

Shaft Diameter (d) inch - 7.9375
Weight (kg) - 60.781328
Bearing Float - S2B-715-FL
Bearing Held - S2B-715-HD
Basic Dynamic Radial Load Rating (Cr) lbs - 200010
Basic Static Radial Load Rating (C0r) lbs - 325896
Basic Dynamic Axial Load Rating (Ca) lbs - 12501
Maximum Limiting Speed (rpm) - 1188
Outside Diameter Bearing (Do) inch - 14.5
Width Inner Ring (Co) inch - 6.141
Width Outer Ring (Bo) inch - 3.563
Housing Group - 800 Grp
