Description
Brand - FAG
Item Number - S2B-808-FL FAG

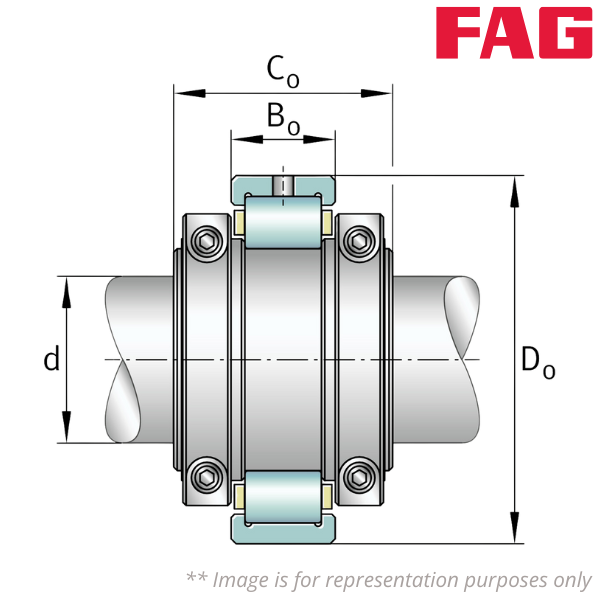

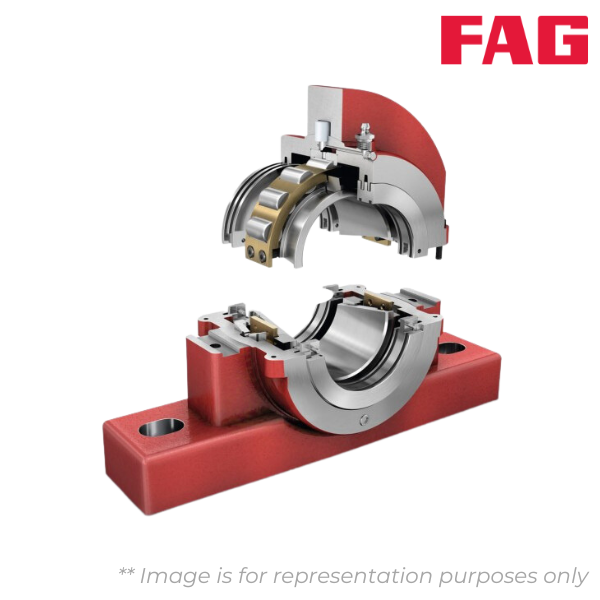

Category - Split Cylindrical Roller Bearing Housing
Shaft Diameter (d) inch - 8.5
Weight (kg) - 67.131616
Bearing Float - S2B-808-FL
Bearing Held - S2B-808-HD
Basic Dynamic Radial Load Rating (Cr) lbs - 216837
Basic Static Radial Load Rating (C0r) lbs - 371687
Basic Dynamic Axial Load Rating (Ca) lbs - 13051
Maximum Limiting Speed (rpm) - 1091
Outside Diameter Bearing (Do) inch - 15.5
Width Inner Ring (Co) inch - 6.402
Width Outer Ring (Bo) inch - 3.563
Housing Group - 900 Grp
