Description
Brand - FAG
Item Number - S2BC-503-HD FAG

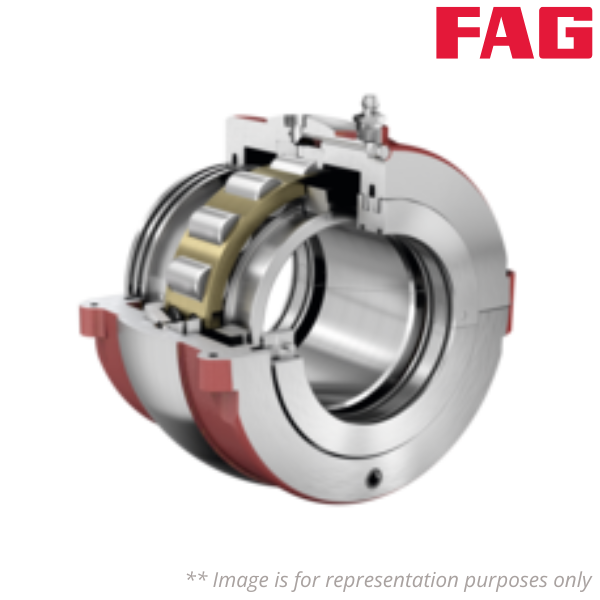

Category - Split Cylindrical Roller Bearing Housing

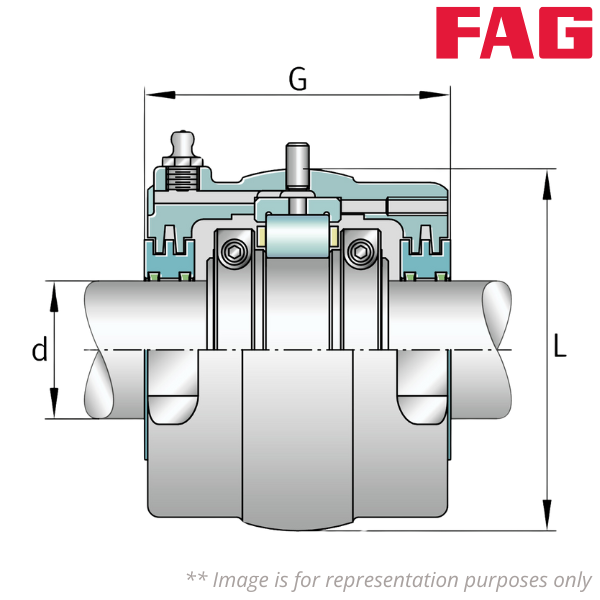

Shaft Diameter (d) inch - 5.1875
Cartridge Assembly Float Bearing - S2BC-503-FL
Cartridge Assembly Held Bearing - S2BC-503-HD
Length Through Bore (G) inch - 7.375
Outside Diameter Cartridge (L) inch - 12.75
Grease Capacity (lbs) - 3
Cartridge - S2C-508
Weight (kg) - 62.7317736
Bearing Float - S2B-503-FL
Bearing Held - S2B-503-HD
Bearing Weight (kg) - 26.4444136
Basic Dynamic Radial Load Rating (Cr) lbs - 133700
Basic Static Radial Load Rating (C0r) lbs - 197779
Basic Dynamic Axial Load Rating (Ca) lbs - 1060
Maximum Limiting Speed (rpm) - 1630

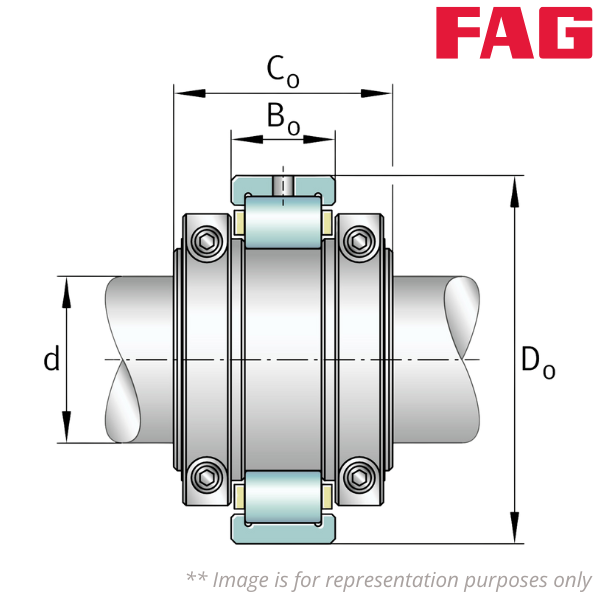

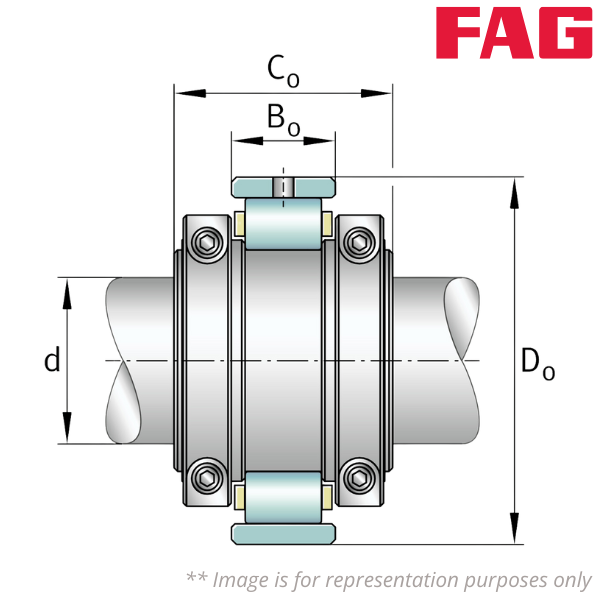

Outside Diameter Bearing (Do) inch - 10.75
Width Inner Ring (Co) inch - 4.625
Width Outer Ring (Bo) inch - 2.625
Housing Group - 508 Grp
