Description
Brand - FAG
Item Number - S2BC-600-HD FAG

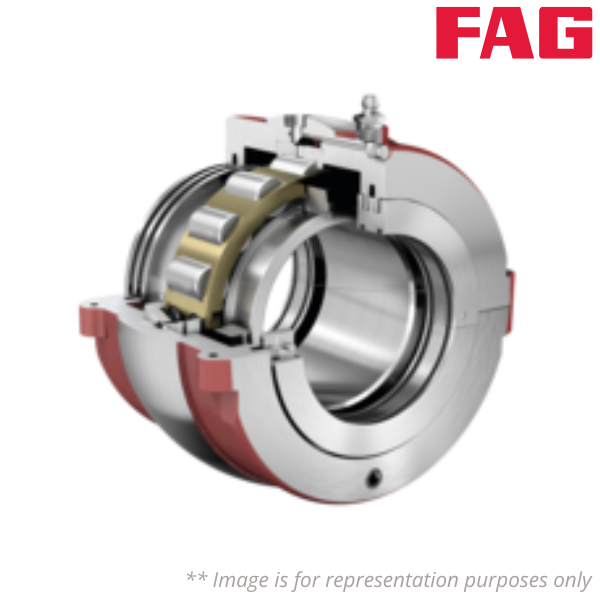

Category - Split Cylindrical Roller Bearing Housing

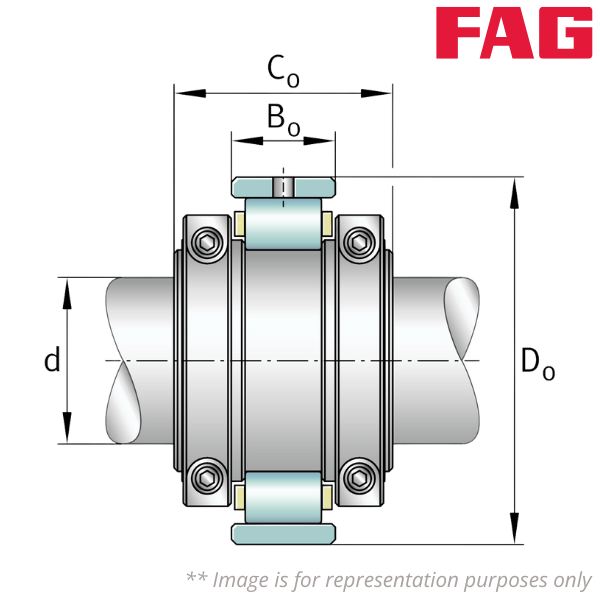

Shaft Diameter (d) inch - 6
Cartridge Assembly Float Bearing - S2BC-600-FL
Cartridge Assembly Held Bearing - S2BC-600-HD

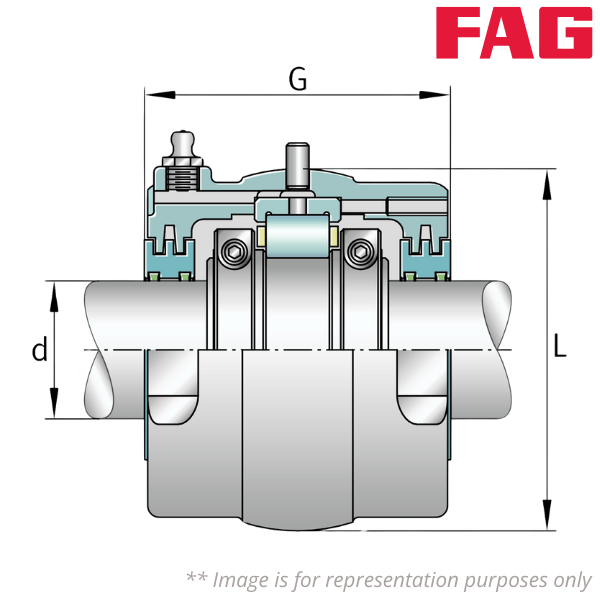

Length Through Bore (G) inch - 7.9375
Outside Diameter Cartridge (L) inch - 13.25
Grease Capacity (lbs) - 3
Cartridge - S2C-600
Weight (kg) - 73.481904
Bearing Float - S2B-600-FL
Bearing Held - S2B-600-HD
Bearing Weight (kg) - 31.9328768
Basic Dynamic Radial Load Rating (Cr) lbs - 147326
Basic Static Radial Load Rating (C0r) lbs - 229303
Basic Dynamic Axial Load Rating (Ca) lbs - 1138
Maximum Limiting Speed (rpm) - 1450
Outside Diameter Bearing (Do) inch - 11.5
Width Inner Ring (Co) inch - 4.875
Width Outer Ring (Bo) inch - 2.668
Housing Group - 600 Grp
