Description
Brand - FAG
Item Number - S2BC-708-HD FAG

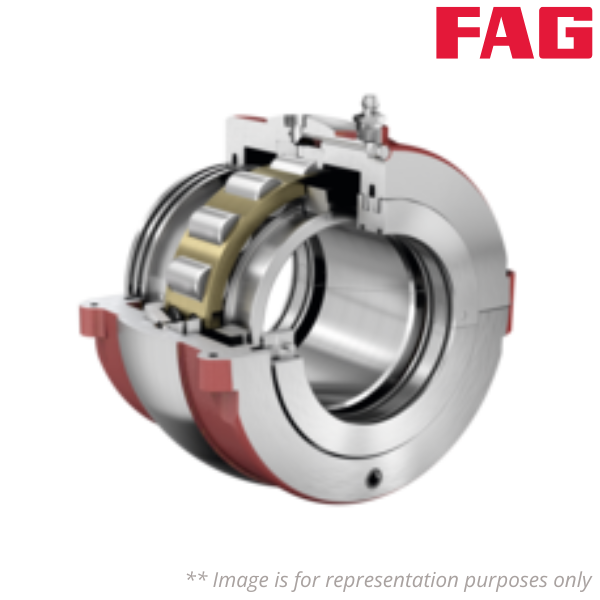

Category - Split Cylindrical Roller Bearing Housing
Shaft Diameter (d) inch - 7.5
Cartridge Assembly Float Bearing - S2BC-708-FL
Cartridge Assembly Held Bearing - S2BC-708-HD

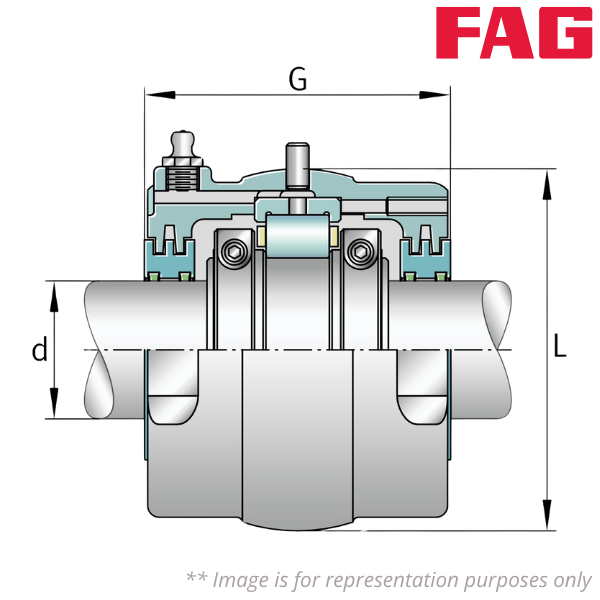

Length Through Bore (G) inch - 10.0625
Outside Diameter Cartridge (L) inch - 16.75
Grease Capacity (lbs) - 5.9
Cartridge - S2C-800
Weight (kg) - 156.4438808
Bearing Float - S2B-708-FL
Bearing Held - S2B-708-HD
Bearing Weight (kg) - 60.781328
Basic Dynamic Radial Load Rating (Cr) lbs - 200010
Basic Static Radial Load Rating (C0r) lbs - 325896
Basic Dynamic Axial Load Rating (Ca) lbs - 12501
Maximum Limiting Speed (rpm) - 1188

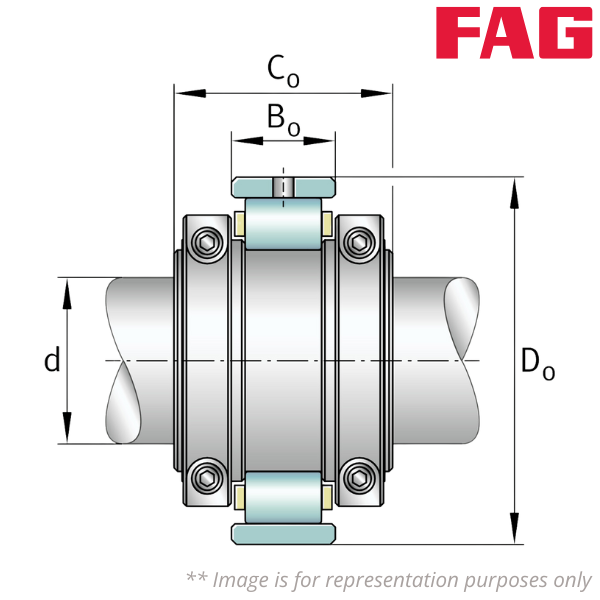

Outside Diameter Bearing (Do) inch - 14.5
Width Inner Ring (Co) inch - 6.141
Width Outer Ring (Bo) inch - 3.563
Housing Group - 800 Grp
