Description
Brand - FAG
Item Number - S2BC-900-FL FAG

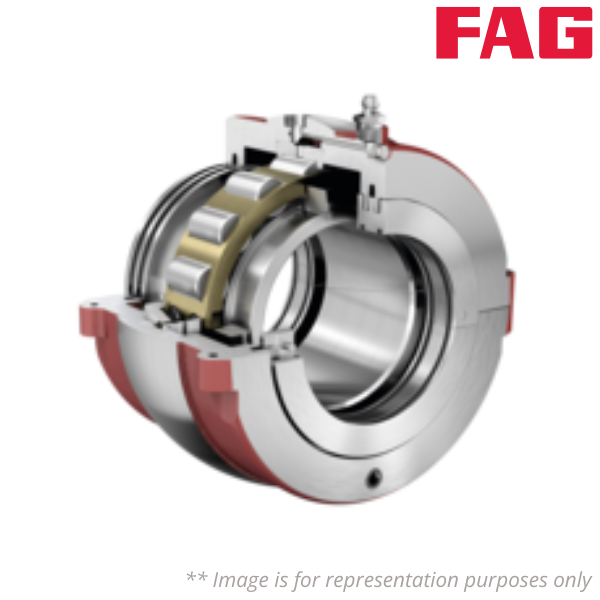

Category - Split Cylindrical Roller Bearing Housing

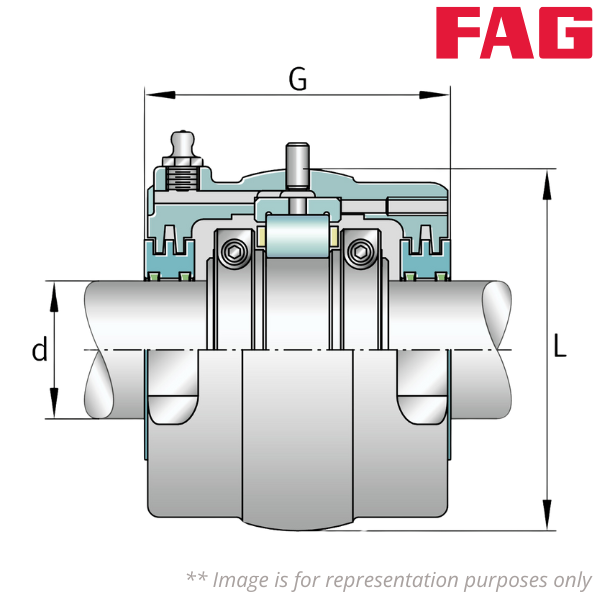

Shaft Diameter (d) inch - 9
Cartridge Assembly Float Bearing - S2BC-900-FL
Cartridge Assembly Held Bearing - S2BC-900-HD
Length Through Bore (G) inch - 10.8125
Outside Diameter Cartridge (L) inch - 18
Grease Capacity (lbs) - 8
Cartridge - S2C-900
Weight (kg) - 165.0621288
Bearing Float - S2B-900-FL
Bearing Held - S2B-900-HD
Bearing Weight (kg) - 67.131616
Basic Dynamic Radial Load Rating (Cr) lbs - 216837
Basic Static Radial Load Rating (C0r) lbs - 371687
Basic Dynamic Axial Load Rating (Ca) lbs - 13051
Maximum Limiting Speed (rpm) - 1091

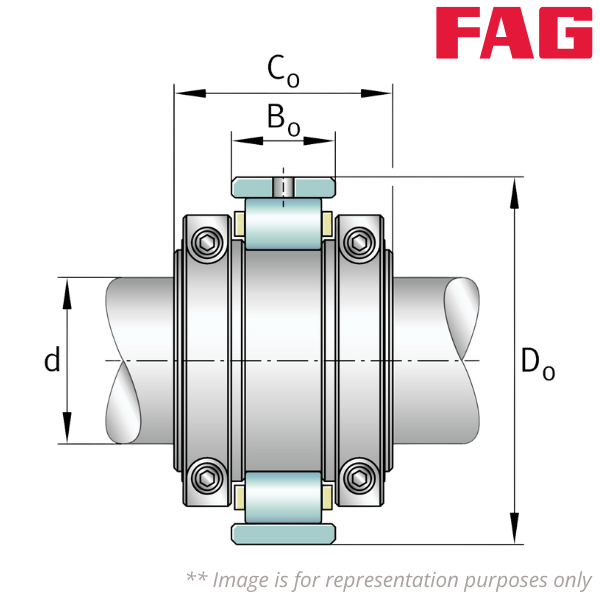

Outside Diameter Bearing (Do) inch - 15.5
Width Inner Ring (Co) inch - 6.402
Width Outer Ring (Bo) inch - 3.563
Housing Group - 900 Grp
