Description
Brand - FAG
Item Number - S2BCF-100MM-HD FAG

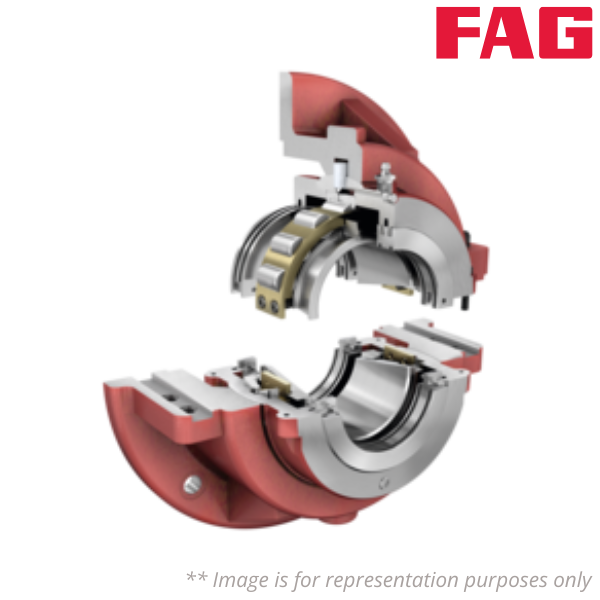

Category - Plummer Block Flanged Housing Unit
Shaft Diameter (d) mm - 100
Weight (m) kg - 53.977448
Complete Unit Float - S2BCF-100MM-FL
Complete Unit Held - S2BCF-100MM-HD
Housing Deignation - FH-7

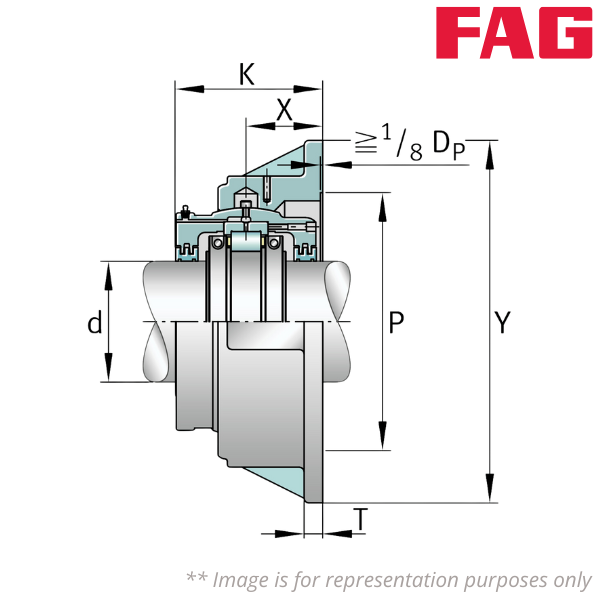

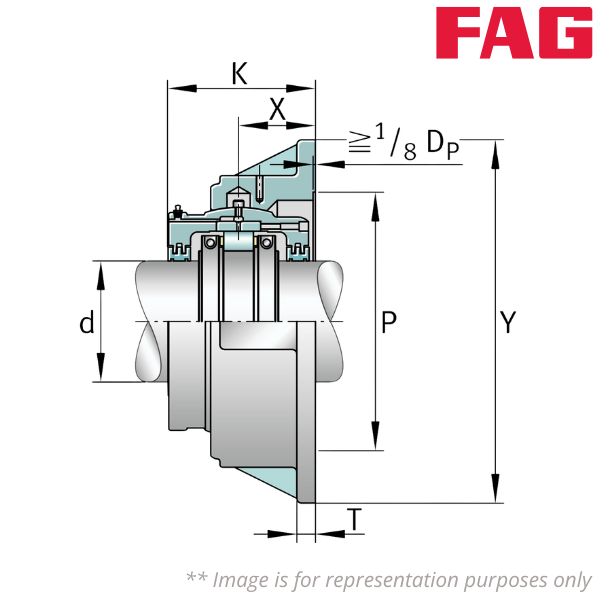

Flange Outside Diameter (Y) inch - 15
Width (K) inch - 6.5
Bearing Centerline Location (X) inch - 3.625

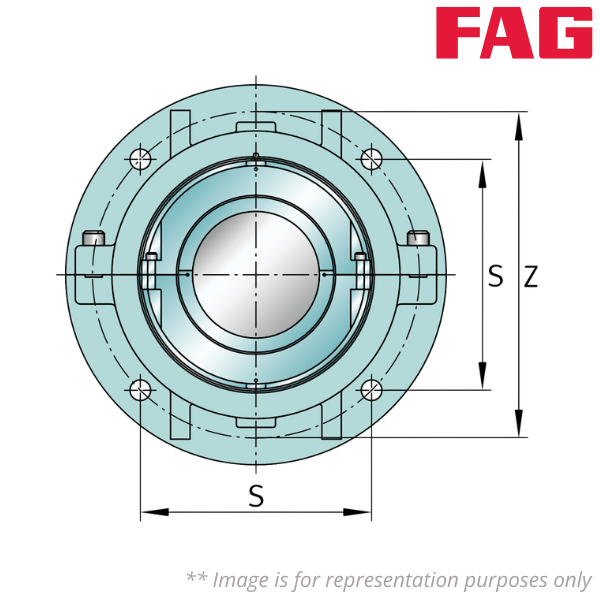

Bolt Circle Diameter (Z) inch - 13.125
Bolt Hole Distance (S) inch - 9.25
Thickness of Flange (T) inch - 0.875
Pilot Counterbore Diameter (P) inch - 10.875
Mounting Bolt Number (S) - 4
Mounting Bolt Diameter (S) inch - 0.625
