Description
Brand - FAG
Item Number - S2BCF-203-HD FAG
Category - Plummer Block Flanged Housing Unit
Shaft Diameter (d) inch - 2.1875
Weight (m) kg - 22.226008
Complete Unit Float - S2BCF-203-FL
Complete Unit Held - S2BCF-203-HD
Housing Deignation - FH-4

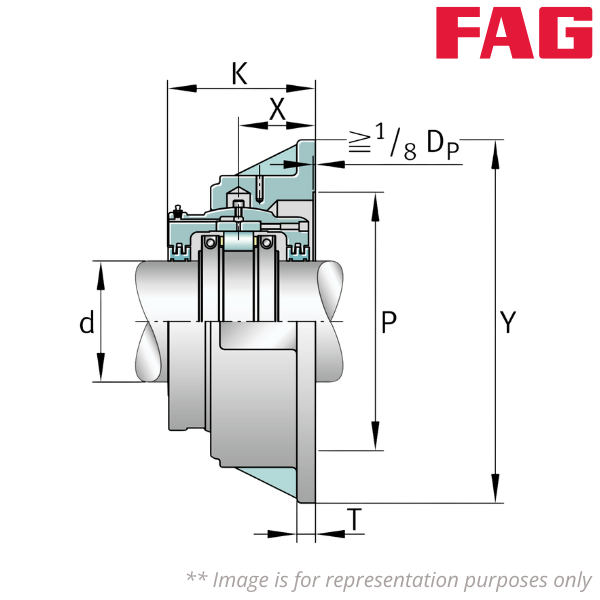

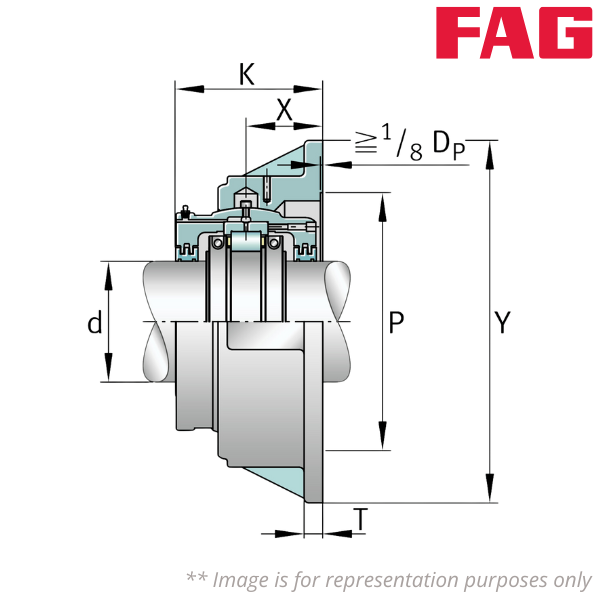

Flange Outside Diameter (Y) inch - 11.25
Width (K) inch - 5.375
Bearing Centerline Location (X) inch - 2.875

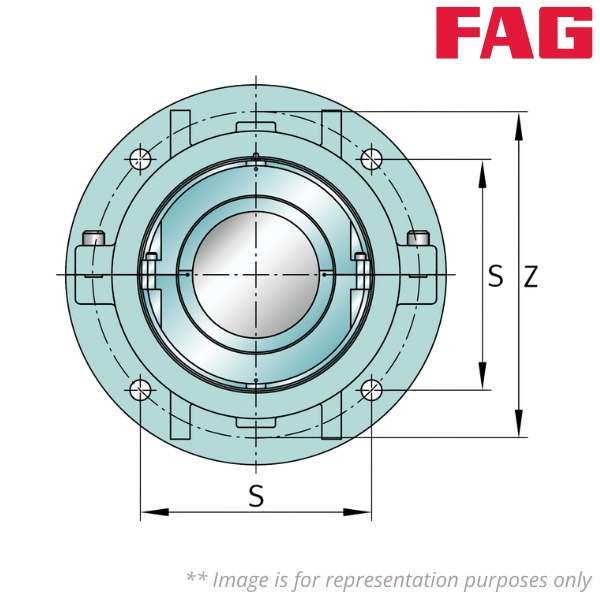

Bolt Circle Diameter (Z) inch - 9.5625
Bolt Hole Distance (S) inch - 6.75
Thickness of Flange (T) inch - 0.625
Pilot Counterbore Diameter (P) inch - 7.5625
Mounting Bolt Number (S) - 4
Mounting Bolt Diameter (S) inch - 0.5
