Description
Brand - FAG
Item Number - S2BCF-403-HD FAG

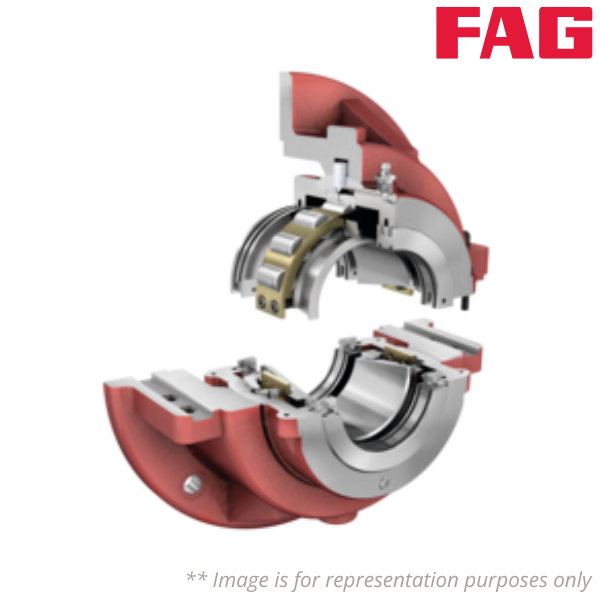

Category - Plummer Block Flanged Housing Unit
Shaft Diameter (d) inch - 4.1875
Weight (m) kg - 86.5907128
Complete Unit Float - S2BCF-403-FL
Complete Unit Held - S2BCF-403-HD
Housing Deignation - FH-8

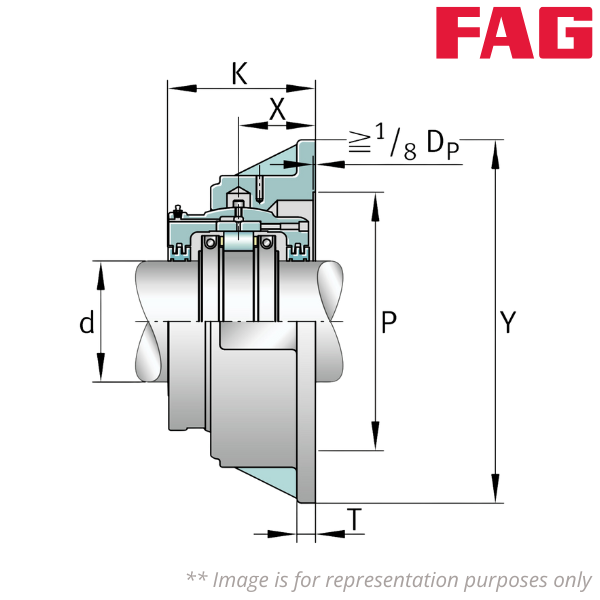

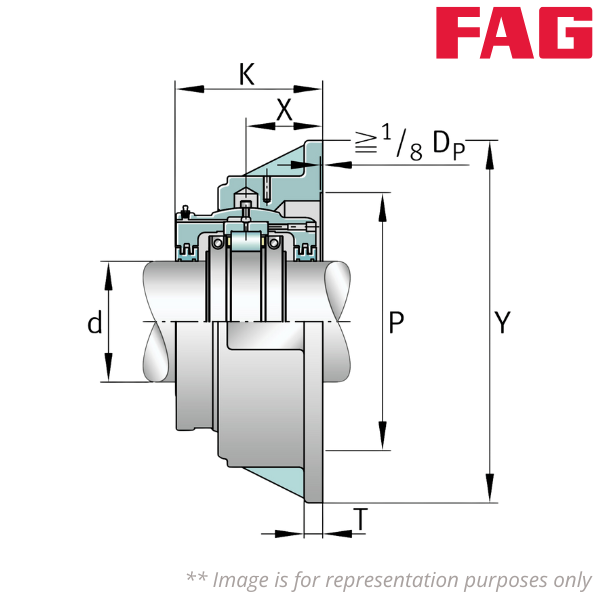

Flange Outside Diameter (Y) inch - 17
Width (K) inch - 7.0625
Bearing Centerline Location (X) inch - 3.875

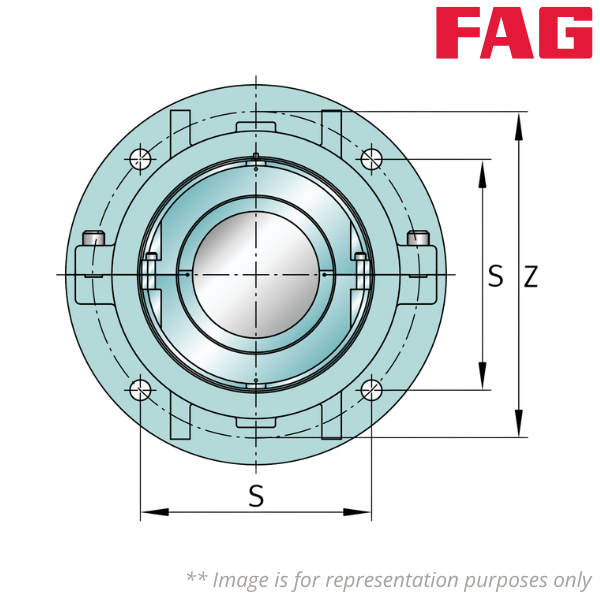

Bolt Circle Diameter (Z) inch - 14.75
Bolt Hole Distance (S) inch - 10.4375
Thickness of Flange (T) inch - 0.875
Pilot Counterbore Diameter (P) inch - 12.375
Mounting Bolt Number (S) - 4
Mounting Bolt Diameter (S) inch - 0.875
