Description
Brand - FAG
Item Number - S3BC-607-HD FAG

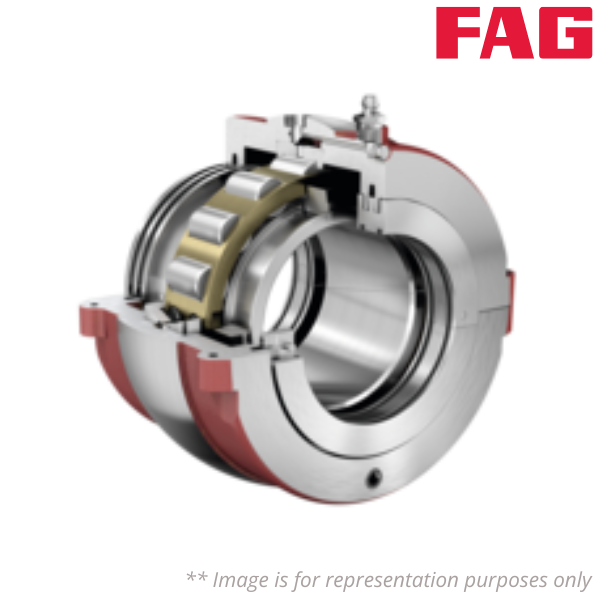

Category - Split Cylindrical Roller Bearing Housing

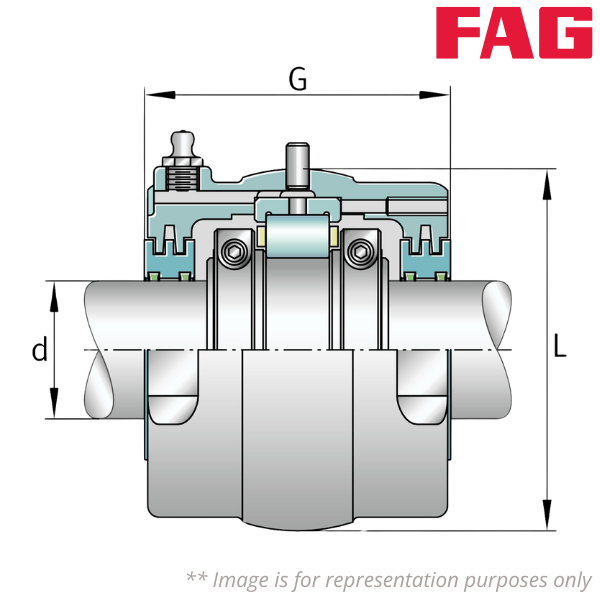

Shaft Diameter (d) inch - 6.4375
Cartridge Assembly Float Bearing - S3BC-607-FL
Cartridge Assembly Held Bearing - S3BC-607-HD
Length Through Bore (G) inch - 10.5625
Outside Diameter Cartridge (L) inch - 16.625
Grease Capacity (lbs) - 8.4
Cartridge - S3C-608
Weight (kg) - 166.8764968
Bearing Float - S3B-607-FL
Bearing Held - S3B-607-HD
Bearing Weight (kg) - 76.657048
Basic Dynamic Radial Load Rating (Cr) lbs - 237189
Basic Static Radial Load Rating (C0r) lbs - 360515
Basic Dynamic Axial Load Rating (Ca) lbs - 15462
Maximum Limiting Speed (rpm) - 1305

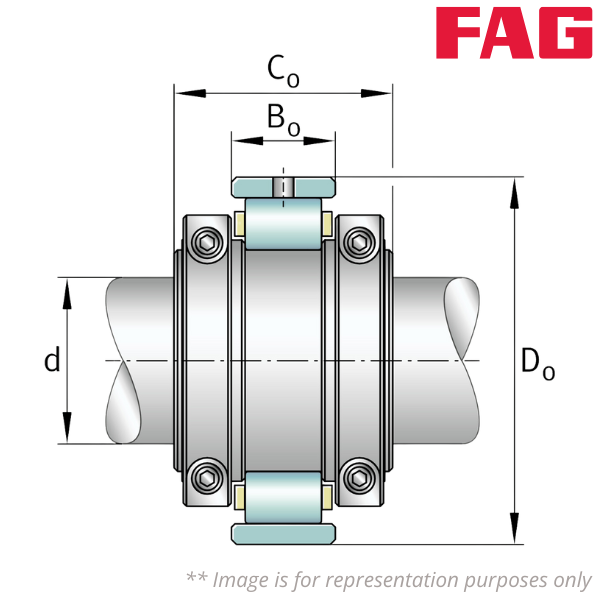

Outside Diameter Bearing (Do) inch - 14
Width Inner Ring (Co) inch - 6.72
Width Outer Ring (Bo) inch - 4.063
Housing Group - 608 Grp
