Description
Brand - NEW WAY
Item Number - S40-01200-125508 NEW WAY
Category - End Supported Air Slides
Imperial :
Input Pressure (psi) - 60
Flow (SCFH) - 25.4
Maximum Load (Z) "Top Load" (lbs) - 311.23
Maximum Load (Y) "Side Load" (lbs) - 266.24
Accuracy “X” (Micro-Inches per Inch) - 10
Accuracy “Y” (Micro-Inches per Inch) - 10
Stiffness "Y" (lb/inch) - 2662491
Stiffness "Z" (lb/inch) - 3112489
Maximum Pitch Moment (lbs-in) - 535
Maximum Roll Moment (lb-in) - 513.7
Maximum Yaw Moment (lb-in) - 457.5
Rail Length (inch) - 20
Travel Length (inch) - 12
Metric :
Input Pressure (MPa) - 0.41
Flow (NLPM) - 10.98
Maximum Load (Z) "Top Load" (N) - 1384.4
Maximum Load (Y) "Side Load" (N) - 1184.3
Accuracy “X” (Micron per 25mm) - 0.25
Accuracy “Y” (Micron per 25mm) - 0.25
Stiffness "Y" (N/mm) - 466273.5
Stiffness "Z" (N/mm) - 545080.3
Maximum Pitch Moment (N-m) - 60.45
Maximum Roll Moment (N-m) - 58.05
Maximum Yaw Moment (N-m) - 51.7
Rail Length (mm) - 508
Travel Length (mm) - 304.8
Notes :
1. Material and Finish :
------------------------------------------
Housings and Guide Bar : Black Anodized Aluminum
Bearings : Porous Carbon
2. "XXX" in mm denotes the last 3 digits of the assembly part number as listed in the chart above
3. Chamfer of 0.60 inches applied to all edges

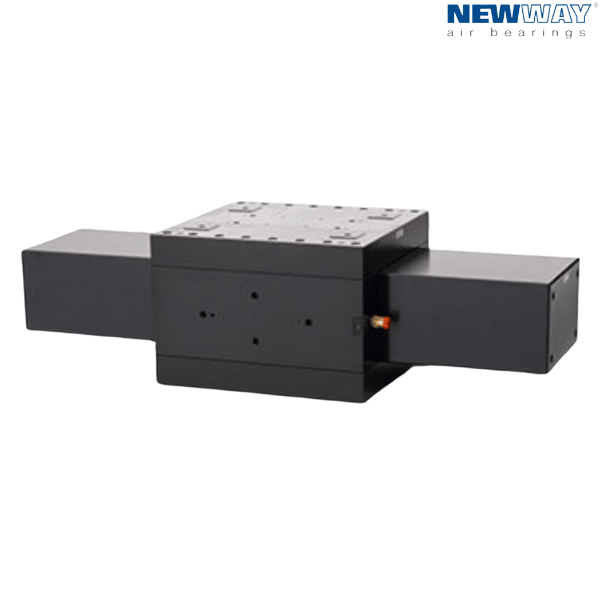

** Images are for representation purposes only
