SA035AR0 RBC

Brand - RBC
Item Number - SA035AR0*RBC
Category - Angular Contact, A-Type Thin Section Ball Bearings

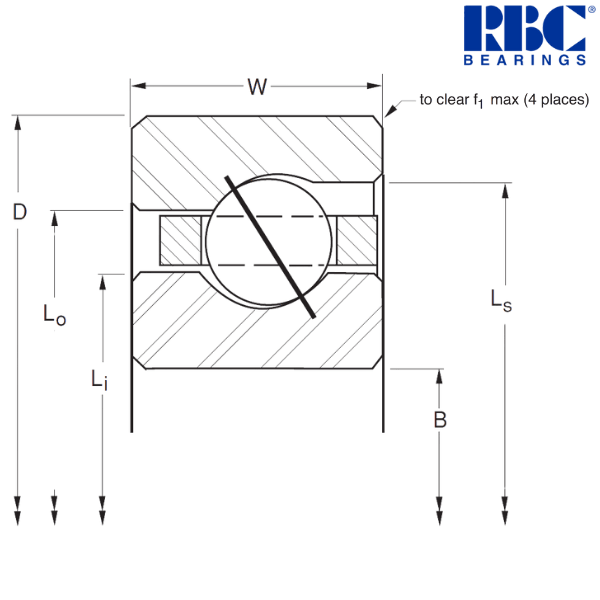

Principal Dimensions & Load Ratings (Imperial) :
Bore Diameter (B) - 3.5 inch
Outside Diameter (D) - 4 inch
Width (W) - 0.25 inch
Land Diameter of Inner Ring (Li) - 3.688 inch
Land Diameter of Outer Ring (Lo) - 3.813 inch
Land Diameter of Counter Bore (Ls) - 3.875 inch
Housing Fillet (f1) - 0.025 inch
Ball Diameter - 0.125 inch
Ball Quantity - 60 pcs.
Approximate Weight - 0.18 lbs
Radial Static Load - 1310 lbf
Radial Dynamic Load - 720 lbf
Thrust Static Load - 3790 lbf
Thrust Dynamic Load - 2070 lbf

Principal Dimensions & Load Ratings (Metric) :
Bore Diameter (B) - 88.9 mm
Outside Diameter (D) - 101.6 mm
Width (W) - 6.35 mm
Land Diameter of Inner Ring (Li) - 93.68 mm
Land Diameter of Outer Ring (Lo) - 96.85 mm
Land Diameter of Counter Bore (Ls) - 98.43 mm
Housing Fillet (f1) - 0.64 mm
Approximate Weight - 0.082 kg
Radial Static Load - 5830 N
Radial Dynamic Load - 3200 N
Thrust Static Load - 16860 N
Thrust Dynamic Load - 9210 N

Description of Suffixes and Prefixes :
S - No seals or shields
A - Standard Width
A - Angular Ball Contact
R - Brass or (Composite)
0 - ABEC 1F

Other salient Points about this Bearing :
• 440C Stainless Steel
• Large Diameter
• Light Weight
• Small Cross Section
• Circular Pocket Ball Separator

* The alphanumeric identification system is used under license.

♦ ♦ Images are for representation purposes only
