SA035XP0 RBC

Brand - RBC
Item Number - SA035XP0*RBC
Category - 4-Point Contact, X-Type Thin Section Ball Bearings

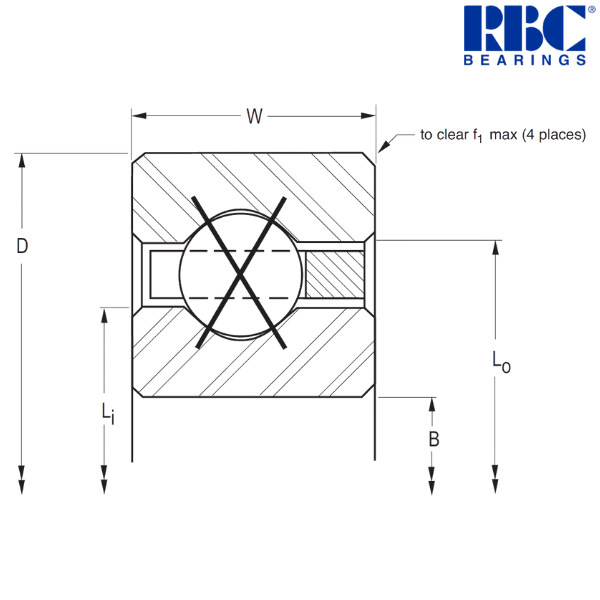

Principal Dimensions & Load Ratings (Imperial) :
Bore Diameter (B) - 3.5 inch
Outside Diameter (D) - 4 inch
Width (W) - 0.25 inch
Land Diameter of Inner Ring (Li) - 3.688 inch
Land Diameter of Outer Ring (Lo) - 3.813 inch
Housing Fillet (f1) - 0.025 inch
Ball Diameter - 0.125 inch
Ball Quantity - 45 pcs.
Approximate Weight - 0.18 lbs
Radial Static Load - 1140 lbf
Radial Dynamic Load - 701 lbf
Thrust Static Load - 2850 lbf
Thrust Dynamic Load - 1480 lbf
Moment Static Load - 2130 lbf-in
Moment Dynamic Load - 1110 lbf-in

Principal Dimensions & Load Ratings (Metric) :
Bore Diameter (B) - 88.9 mm
Outside Diameter (D) - 101.6 mm
Width (W) - 6.35 mm
Land Diameter of Inner Ring (Li) - 93.68 mm
Land Diameter of Outer Ring (Lo) - 96.85 mm
Housing Fillet (f1) - 0.64 mm
Approximate Weight - 0.082 kg
Radial Static Load - 5070 N
Radial Dynamic Load - 3120 N
Thrust Static Load - 12680 N
Thrust Dynamic Load - 6580 N
Moment Static Load - 240 Nm
Moment Dynamic Load - 130 Nm

Description of Suffixes and Prefixes : <.b>
S - No seals or shields

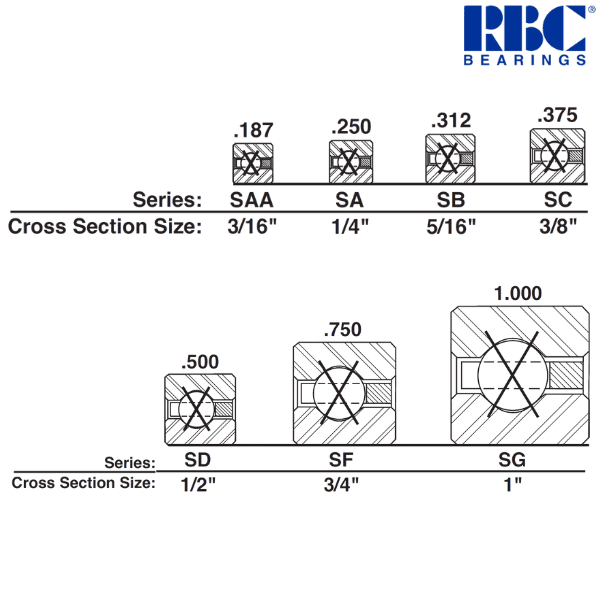

A - Standard Width
X - 4-Point Ball Contact
P - Brass or (Composite)
0 - ABEC 1F

Notes about this Bearing :
• 440C Stainless Steel
• Large Diameter
• Light Weight
• Snap-Over Ball Separator

* The alphanumeric identification system is used under license.

♦ ♦ Images are for representation purposes only
