SA040AR0 RBC

Brand - RBC
Item Number - SA040AR0*RBC
Category - Angular Contact, A-Type Thin Section Ball Bearings

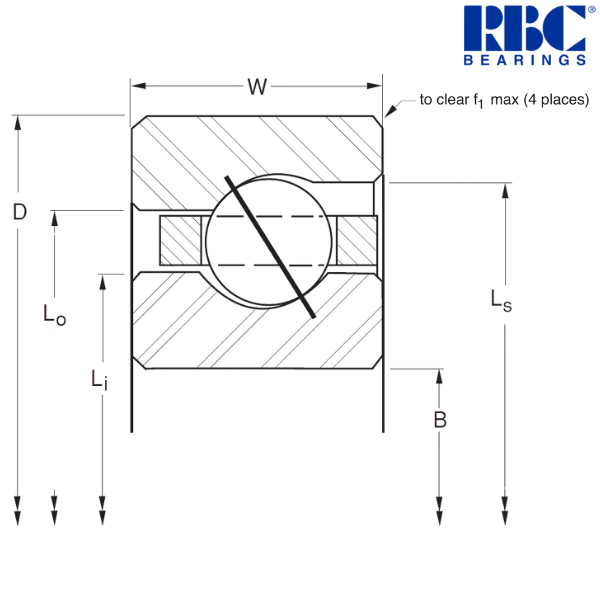

Principal Dimensions & Load Ratings (Imperial) :
Bore Diameter (B) - 4 inch
Outside Diameter (D) - 4.5 inch
Width (W) - 0.25 inch
Land Diameter of Inner Ring (Li) - 4.188 inch
Land Diameter of Outer Ring (Lo) - 4.313 inch
Land Diameter of Counter Bore (Ls) - 4.375 inch
Housing Fillet (f1) - 0.025 inch
Ball Diameter - 0.125 inch
Ball Quantity - 68 pcs.
Approximate Weight - 0.19 lbs
Radial Static Load - 1490 lbf
Radial Dynamic Load - 750 lbf
Thrust Static Load - 4300 lbf
Thrust Dynamic Load - 2180 lbf

Principal Dimensions & Load Ratings (Metric) :
Bore Diameter (B) - 101.6 mm
Outside Diameter (D) - 114.3 mm
Width (W) - 6.35 mm
Land Diameter of Inner Ring (Li) - 106.38 mm
Land Diameter of Outer Ring (Lo) - 109.55 mm
Land Diameter of Counter Bore (Ls) - 111.13 mm
Housing Fillet (f1) - 0.64 mm
Approximate Weight - 0.086 kg
Radial Static Load - 6630 N
Radial Dynamic Load - 3340 N
Thrust Static Load - 19130 N
Thrust Dynamic Load - 9700 N

Description of Suffixes and Prefixes :
S - No seals or shields
A - Standard Width
A - Angular Ball Contact
R - Brass or (Composite)
0 - ABEC 1F

Other salient Points about this Bearing :
• 440C Stainless Steel
• Large Diameter
• Light Weight

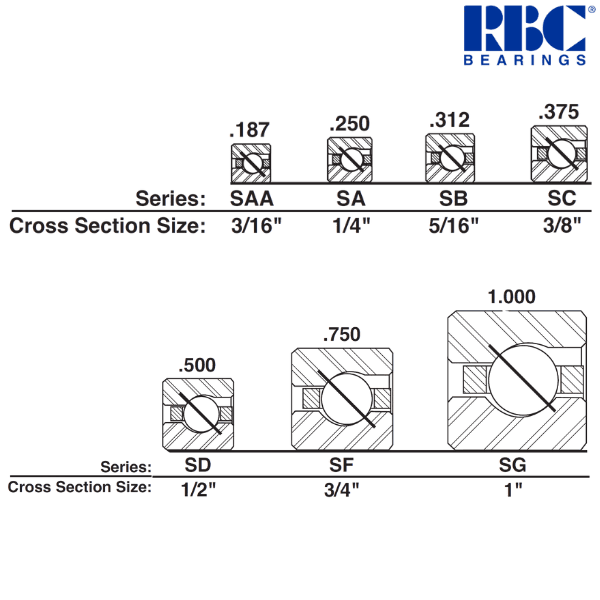

• Small Cross Section
• Circular Pocket Ball Separator

* The alphanumeric identification system is used under license.

♦ ♦ Images are for representation purposes only
