SA045XP0 RBC

Brand - RBC
Item Number - SA045XP0*RBC

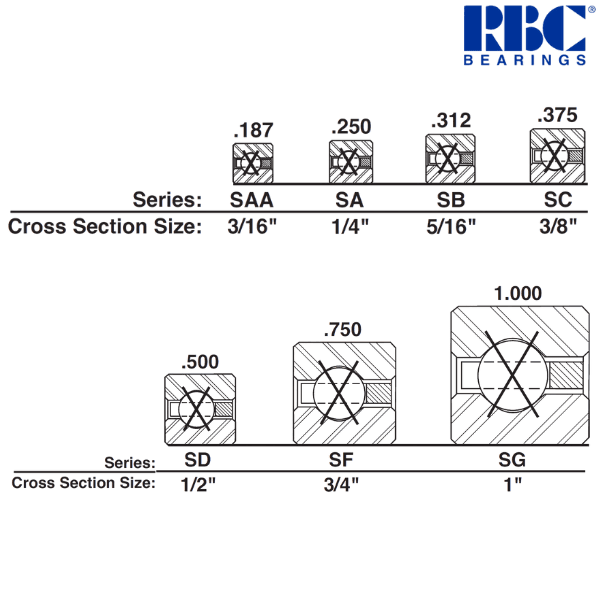

Category - 4-Point Contact, X-Type Thin Section Ball Bearings

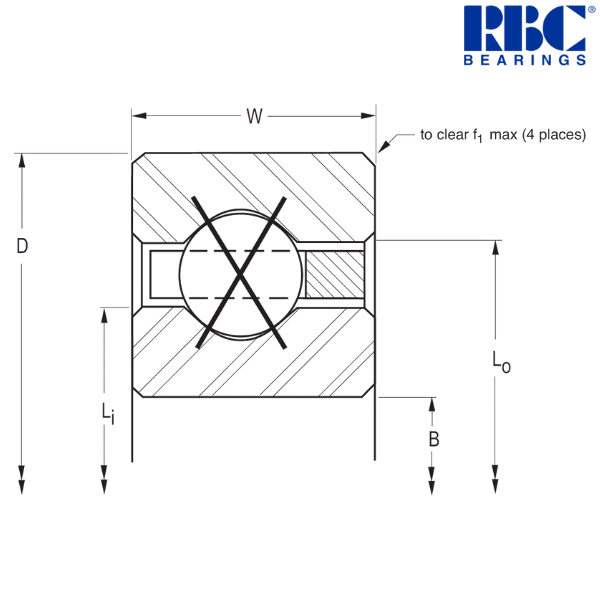

Principal Dimensions & Load Ratings (Imperial) :
Bore Diameter (B) - 4.5 inch
Outside Diameter (D) - 5 inch
Width (W) - 0.25 inch
Land Diameter of Inner Ring (Li) - 4.688 inch
Land Diameter of Outer Ring (Lo) - 4.813 inch
Housing Fillet (f1) - 0.025 inch
Ball Diameter - 0.125 inch
Ball Quantity - 57 pcs.
Approximate Weight - 0.22 lbs
Radial Static Load - 1440 lbf
Radial Dynamic Load - 809 lbf
Thrust Static Load - 3600 lbf
Thrust Dynamic Load - 1610 lbf
Moment Static Load - 3420 lbf-in
Moment Dynamic Load - 1530 lbf-in

Principal Dimensions & Load Ratings (Metric) :
Bore Diameter (B) - 114.3 mm
Outside Diameter (D) - 127 mm
Width (W) - 6.35 mm
Land Diameter of Inner Ring (Li) - 119.08 mm
Land Diameter of Outer Ring (Lo) - 122.25 mm
Housing Fillet (f1) - 0.64 mm
Approximate Weight - 0.1 kg
Radial Static Load - 6410 N
Radial Dynamic Load - 3600 N
Thrust Static Load - 16010 N
Thrust Dynamic Load - 7160 N
Moment Static Load - 390 Nm
Moment Dynamic Load - 170 Nm

Description of Suffixes and Prefixes : <.b>
S - No seals or shields
A - Standard Width
X - 4-Point Ball Contact
P - Brass or (Composite)
0 - ABEC 1F

Notes about this Bearing :
• 440C Stainless Steel
• Large Diameter
• Light Weight
• Snap-Over Ball Separator

* The alphanumeric identification system is used under license.

♦ ♦ Images are for representation purposes only
