SA047AR0 RBC

Brand - RBC
Item Number - SA047AR0*RBC
Category - Angular Contact, A-Type Thin Section Ball Bearings

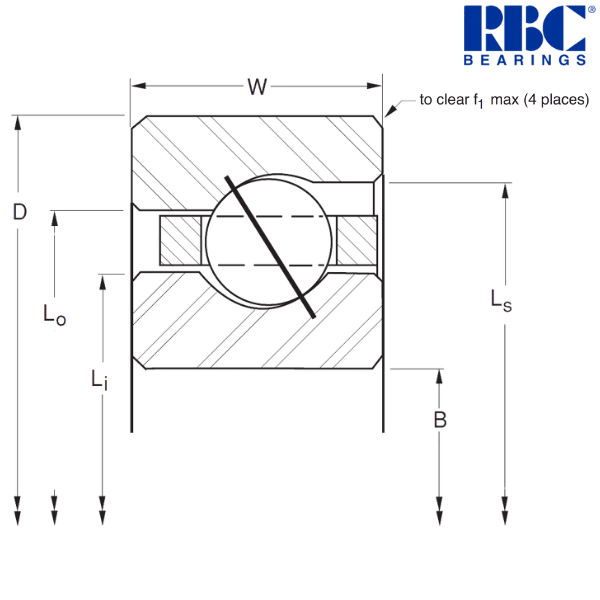

Principal Dimensions & Load Ratings (Imperial) :
Bore Diameter (B) - 4.75 inch
Outside Diameter (D) - 5.25 inch
Width (W) - 0.25 inch
Land Diameter of Inner Ring (Li) - 4.938 inch
Land Diameter of Outer Ring (Lo) - 5.063 inch
Land Diameter of Counter Bore (Ls) - 5.125 inch
Housing Fillet (f1) - 0.025 inch
Ball Diameter - 0.125 inch
Ball Quantity - 80 pcs.
Approximate Weight - 0.23 lbs
Radial Static Load - 1750 lbf
Radial Dynamic Load - 800 lbf
Thrust Static Load - 5060 lbf
Thrust Dynamic Load - 2310 lbf

Principal Dimensions & Load Ratings (Metric) :
Bore Diameter (B) - 120.65 mm
Outside Diameter (D) - 133.35 mm
Width (W) - 6.35 mm
Land Diameter of Inner Ring (Li) - 125.43 mm
Land Diameter of Outer Ring (Lo) - 128.6 mm
Land Diameter of Counter Bore (Ls) - 130.18 mm
Housing Fillet (f1) - 0.64 mm
Approximate Weight - 0.104 kg
Radial Static Load - 7780 N
Radial Dynamic Load - 3560 N
Thrust Static Load - 22510 N
Thrust Dynamic Load - 10280 N

Description of Suffixes and Prefixes :
S - No seals or shields
A - Standard Width
A - Angular Ball Contact
R - Brass or (Composite)
0 - ABEC 1F

Other salient Points about this Bearing :
• 440C Stainless Steel
• Large Diameter
• Light Weight
• Small Cross Section
• Circular Pocket Ball Separator

* The alphanumeric identification system is used under license.

♦ ♦ Images are for representation purposes only
