SA055XP0 RBC

Brand - RBC
Item Number - SA055XP0*RBC
Category - 4-Point Contact, X-Type Thin Section Ball Bearings

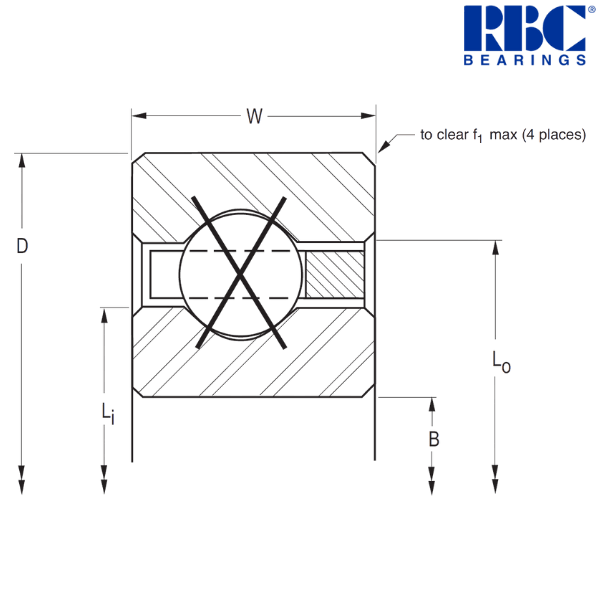

Principal Dimensions & Load Ratings (Imperial) :
Bore Diameter (B) - 5.5 inch
Outside Diameter (D) - 6 inch
Width (W) - 0.25 inch
Land Diameter of Inner Ring (Li) - 5.688 inch
Land Diameter of Outer Ring (Lo) - 5.813 inch
Housing Fillet (f1) - 0.025 inch
Ball Diameter - 0.125 inch
Ball Quantity - 69 pcs.
Approximate Weight - 0.25 lbs
Radial Static Load - 1750 lbf
Radial Dynamic Load - 908 lbf
Thrust Static Load - 4360 lbf
Thrust Dynamic Load - 1720 lbf
Moment Static Load - 5020 lbf-in
Moment Dynamic Load - 1970 lbf-in

Principal Dimensions & Load Ratings (Metric) :
Bore Diameter (B) - 139.7 mm
Outside Diameter (D) - 152.4 mm
Width (W) - 6.35 mm
Land Diameter of Inner Ring (Li) - 144.48 mm
Land Diameter of Outer Ring (Lo) - 147.65 mm
Housing Fillet (f1) - 0.64 mm
Approximate Weight - 0.113 kg
Radial Static Load - 7780 N
Radial Dynamic Load - 4040 N
Thrust Static Load - 19390 N
Thrust Dynamic Load - 7650 N
Moment Static Load - 570 Nm
Moment Dynamic Load - 220 Nm

Description of Suffixes and Prefixes : <.b>
S - No seals or shields

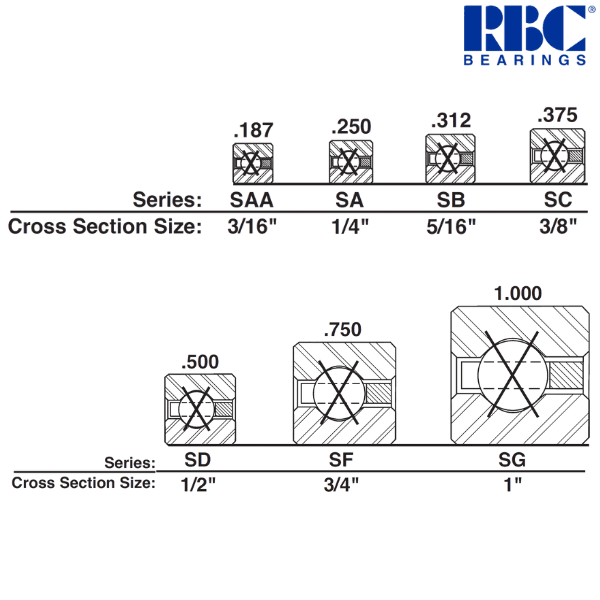

A - Standard Width
X - 4-Point Ball Contact
P - Brass or (Composite)
0 - ABEC 1F

Notes about this Bearing :
• 440C Stainless Steel
• Large Diameter
• Light Weight
• Snap-Over Ball Separator

* The alphanumeric identification system is used under license.

♦ ♦ Images are for representation purposes only
